B315-029-046+LRX24-MFT | CCV | 0.5" | 6 Way | 0.29 | 0.46 Cv | w/ Non-Spg | 24V | MFT | Belimo

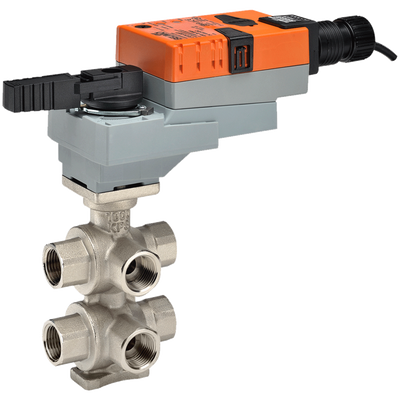

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B315-029-046+LRX24-MFT
Documents and manuals
Belimo B315-029-046+LRX24-MFT Documents
Overview
Details for B315-029-046+LRX24-MFT
CCV | 0.5" | 6 Way | 0.29 | 0.46 Cv | w/ Non-Spg | 24V | MFT
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- Sequence 1 (angle 0...30B0) dead zone (30...60B0) sequence 2 (angle 60...90B0)
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 6-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.2 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
