B312B+TR24-3/500 US | CCV | 0.5" | 3 Way | 3 Cv | w/ Non-Spg | 24V | On/Off | Belimo

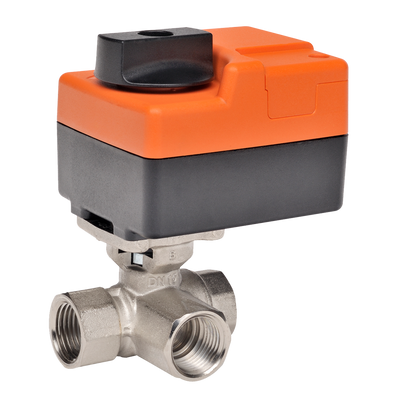

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B312B+TR24-3/500 US
Documents and manuals
Belimo B312B+TR24-3/500 US Documents
Overview
Details for B312B+TR24-3/500 US
CCV | 0.5" | 3 Way | 3 Cv | w/ Non-Spg | 24V | On/Off
CCV | 0.5" | 3 Way | 3 Cv | w/ Non-Spg | 24V | On/Off
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 3
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Chrome plated brass
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP40 NEMA 1
- Electrical Connection
- cable
- Manual Override
- Push down handle
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC 24 V
