B312+TR24-SR US | CCV | 0.5
Brand: BelimoSKU: B312+TR24-SR US
List Price
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B312+TR24-SR US | CCV | 0.5" | 3 Way | 3 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

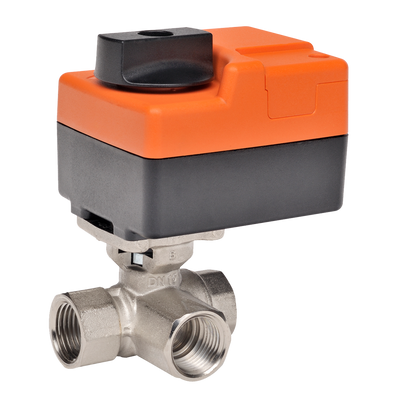

Belimo | B312+TR24-SR US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B312+TR24-SR US

Documents and manuals

Belimo B312+TR24-SR US Documents


Details for B312+TR24-SR US

CCV | 0.5" | 3 Way | 3 Cv | w/ Non-Spg | 24V | 2-10V

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.


Valve specifications
Angle of Rotation
Controllable Flow Range
End Fitting
Internal thread
Chilled or hot water up to 60% glycol
Pressure Independent
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
Electrical Connection
Manual Override
Push down handle
Power Consumption (Running)
0.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
