B310+LRB24-SR | CCV | 0.5
$310.50
Brand: BelimoSKU: B310+LRB24-SR
List Price
$690.00
$310.50
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B310+LRB24-SR | CCV | 0.5" | 3 Way | 1.2 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

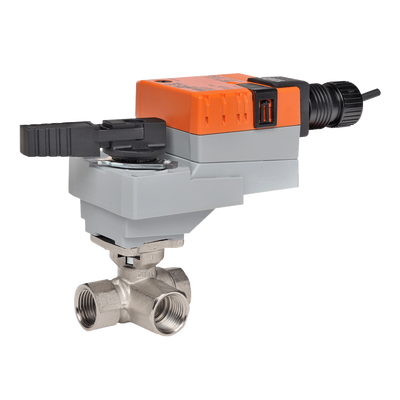

Belimo | B310+LRB24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B310+LRB24-SR

Documents and manuals

Belimo B310+LRB24-SR Documents

Overview

Details for B310+LRB24-SR

CCV | 0.5" | 3 Way | 1.2 Cv | w/ Non-Spg | 24V | 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
1.2
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
