B309+LRX24-PC | CCV | 0.5
$9,999.00
Brand: BelimoSKU: B309+LRX24-PC
Availability: DISCONTINUED

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B309+LRX24-PC | CCV | 0.5" | 3 Way | 0.8 Cv | w/ Non-Spg | 24V | PC | Belimo (OBSOLETE)

Belimo | B309+LRX24-PC

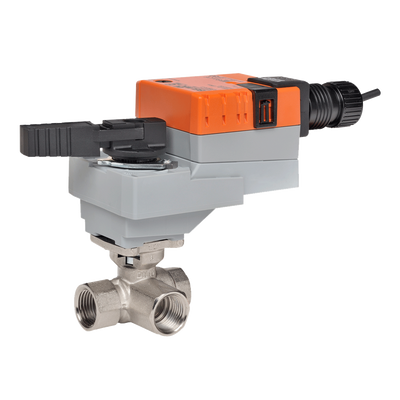

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B309+LRX24-PC

Documents and manuals

Belimo B309+LRX24-PC Documents

Overview

Details for B309+LRX24-PC

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

CCV | 0.5" | 3 Way | 0.8 Cv | w/ Non-Spg | 24V | PC

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
0.8
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 0...20 V PhC
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.2 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
