B308+LRX24-SR | CCV | 0.5" | 3 Way | 0.46 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

Belimo | B308+LRX24-SR

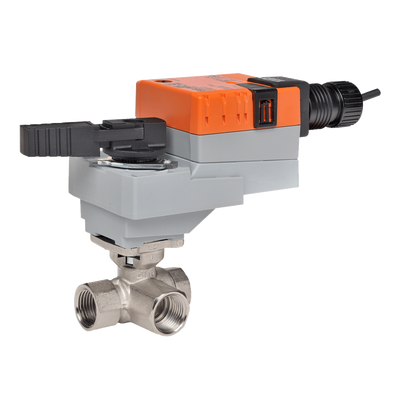

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B308+LRX24-SR

Documents and manuals

Belimo B308+LRX24-SR Documents

Overview

Details for B308+LRX24-SR

CCV | 0.5" | 3 Way | 0.46 Cv | w/ Non-Spg | 24V | 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
0.46
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.2 W
Power Consumption (Running)
1.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
