B249+ARX24-SR-T N4 | CCV | 2" | 2 Way | 46 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H | Belimo

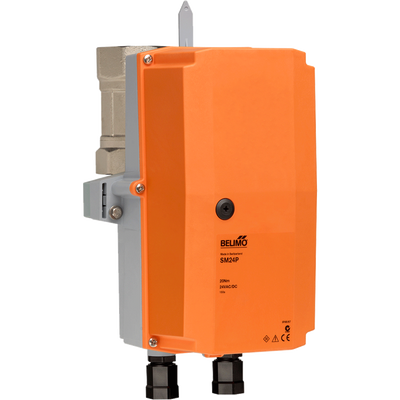

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B249+ARX24-SR-T N4
Documents and manuals
Belimo B249+ARX24-SR-T N4 Documents
Overview
Details for B249+ARX24-SR-T N4
CCV | 2" | 2 Way | 46 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 46
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- DC 2...10 V
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 0.4 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
