B240+ARB24-3 | CCV | 1.5
$316.80
Brand: BelimoSKU: B240+ARB24-3
List Price
$704.00
$316.80
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B240+ARB24-3 | CCV | 1.5" | 2 Way | 37 Cv | w/ Non-Spg | 24V | Floating | Belimo

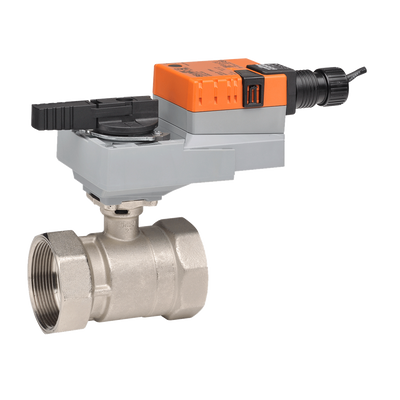

Belimo | B240+ARB24-3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B240+ARB24-3

Documents and manuals

Belimo B240+ARB24-3 Documents

Overview

Details for B240+ARB24-3

CCV | 1.5" | 2 Way | 37 Cv | w/ Non-Spg | 24V | Floating

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
