B240+AFRX24-MFT-S N4 | Characterized Control Valve (CCV), 1 1/2
$1,134.45
Brand: BelimoSKU: B240+AFRX24-MFT-S N4
List Price
$2,521.00
$1,134.45
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B240+AFRX24-MFT-S N4 | Characterized Control Valve (CCV), 1 1/2", 2-way | Configurable Valve Actuator, Spring return, AC/DC 24V, MFT/programmable, 2 x SPDT, NEMA4X | Belimo

Belimo | B240+AFRX24-MFT-S N4

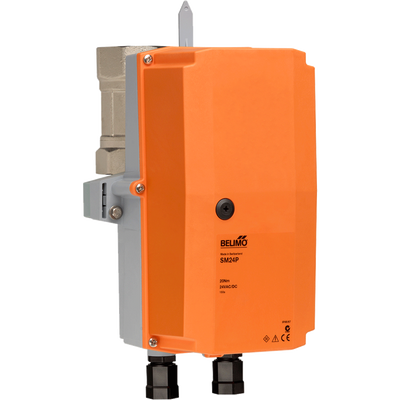

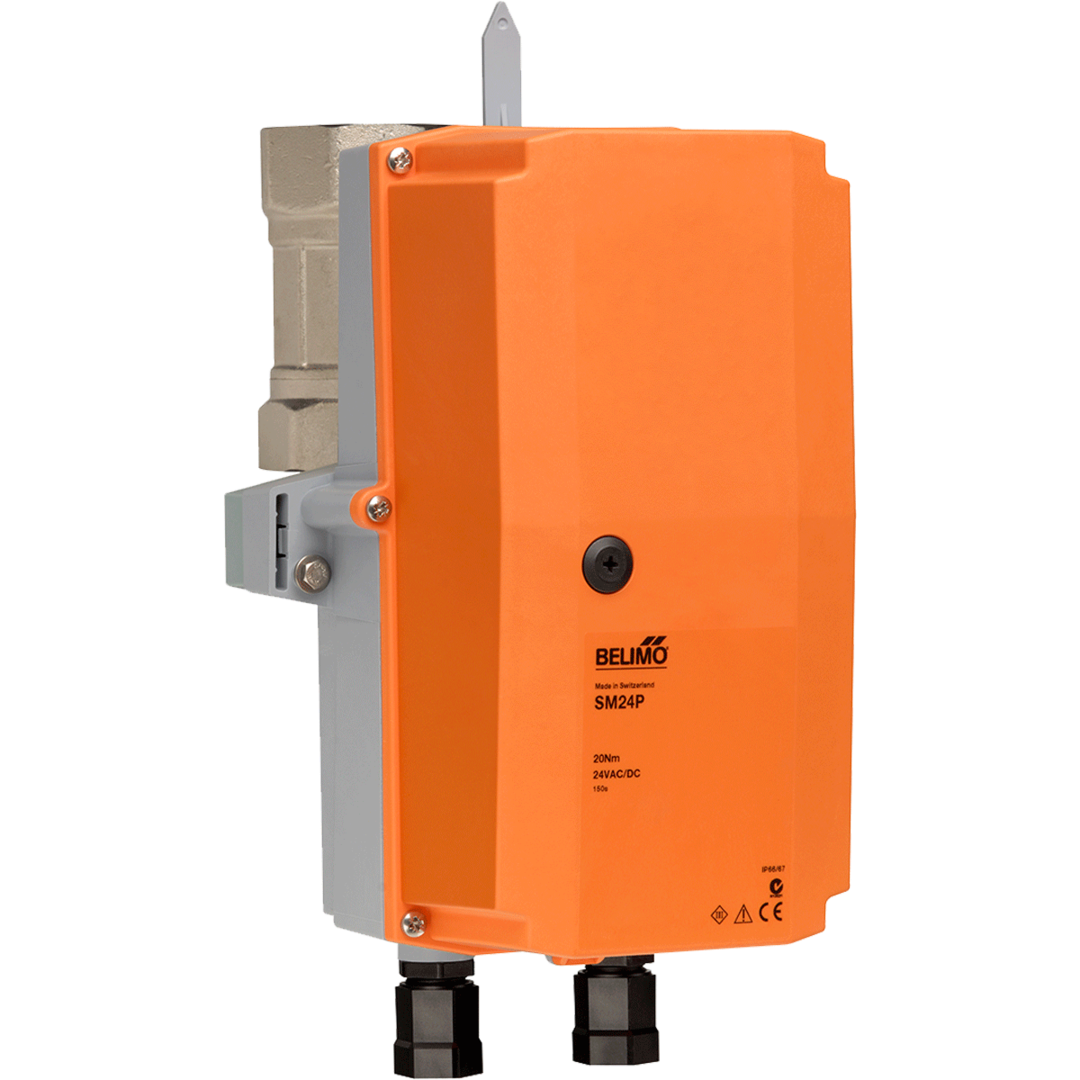

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B240+AFRX24-MFT-S N4

Documents and manuals

Belimo B240+AFRX24-MFT-S N4 Documents

Overview

Details for B240+AFRX24-MFT-S N4

Characterized Control Valve (CCV), 1 1/2", 2-way | Configurable Valve Actuator, Spring return, AC/DC 24V, MFT/programmable, 2 x SPDT, NEMA4X

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3 W
Power Consumption (Running)
7.5 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
