B239VS+PRBUP-3-T | Ball Valve | 1.5" | 2 Way | 84 Cv | w/ Non-Spring | 24 -240V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B239VS+PRBUP-3-T
Overview
Details for B239VS+PRBUP-3-T
Ball Valve | 1.5" | 2 Way | 84 Cv | w/ Non-Spring | 24 -240V | On/Off
Description

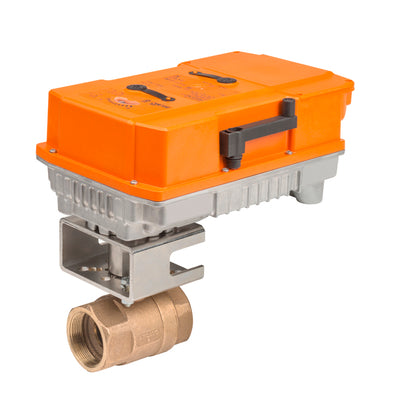

Belimo’s B239VS is a two-way ball valve designed for controlling and diverting the flow in various types of commercial and industrial applications. The assembly features a PRBUP-3-T valve actuator that powers the device with energy-efficient brushless DC motors.
Mode of Operation
The B239VS ball valve works from the PRBUP-3-T actuator that responds to a three-point control system, a modulating power source (from 4 to 20 VDC), or standard voltage control. The assembly has a quarter-turn rotational motion valve, which can start, stop, and regulate high-pressure and high-temperature steam and water applications.
Product Features and Benefits
- Two-way flow ball valves work for regulating and diverting high-temperature fluids
- Quick operations for low-pressure isolation
- Tight shutoff and complete closing/opening of the valve
- Modified linear (B3) and equal percentage flow (B2)
- DC motor works from a universal power supply
- An electronic overload protection mechanism in the actuator
- Adjustable running time (from an NFC-supported smartphone and a Belimo app)
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 90B0 rotation
- Cv
- 84
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1.5" [40]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
