B231+ARX24-MFT95 | CCV | 1.25
$9,999.00
Brand: BelimoSKU: B231+ARX24-MFT95
Availability: DISCONTINUED

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B231+ARX24-MFT95 | CCV | 1.25" | 2 Way | 25 Cv | w/ Non-Spg | 24V | 0-135 ohms | Belimo (OBSOLETE)

Belimo | B231+ARX24-MFT95

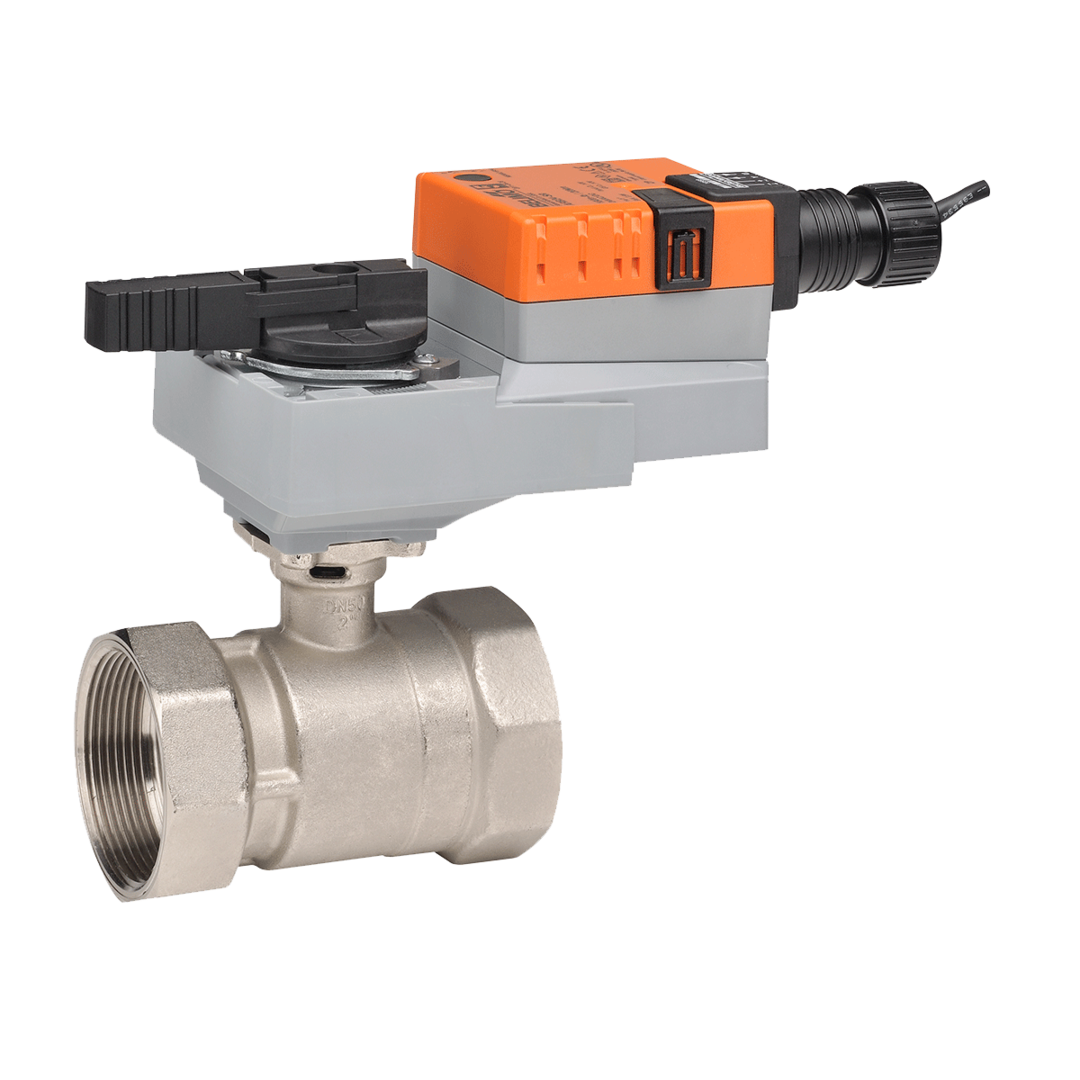

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B231+ARX24-MFT95

Documents and manuals

Belimo B231+ARX24-MFT95 Documents

Overview

Details for B231+ARX24-MFT95

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS

CCV | 1.25" | 2 Way | 25 Cv | w/ Non-Spg | 24V | 0-135 ohms

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
25
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
0...135 N)
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
