B225+LRB120-3 | CCV | 1
Brand: BelimoSKU: B225+LRB120-3
List Price
Availability: This product is currently available to purchase
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B225+LRB120-3 | CCV | 1" | 2 Way | 30 Cv | w/ Non-Spg | 100-240V | Floating | Belimo

Belimo | B225+LRB120-3

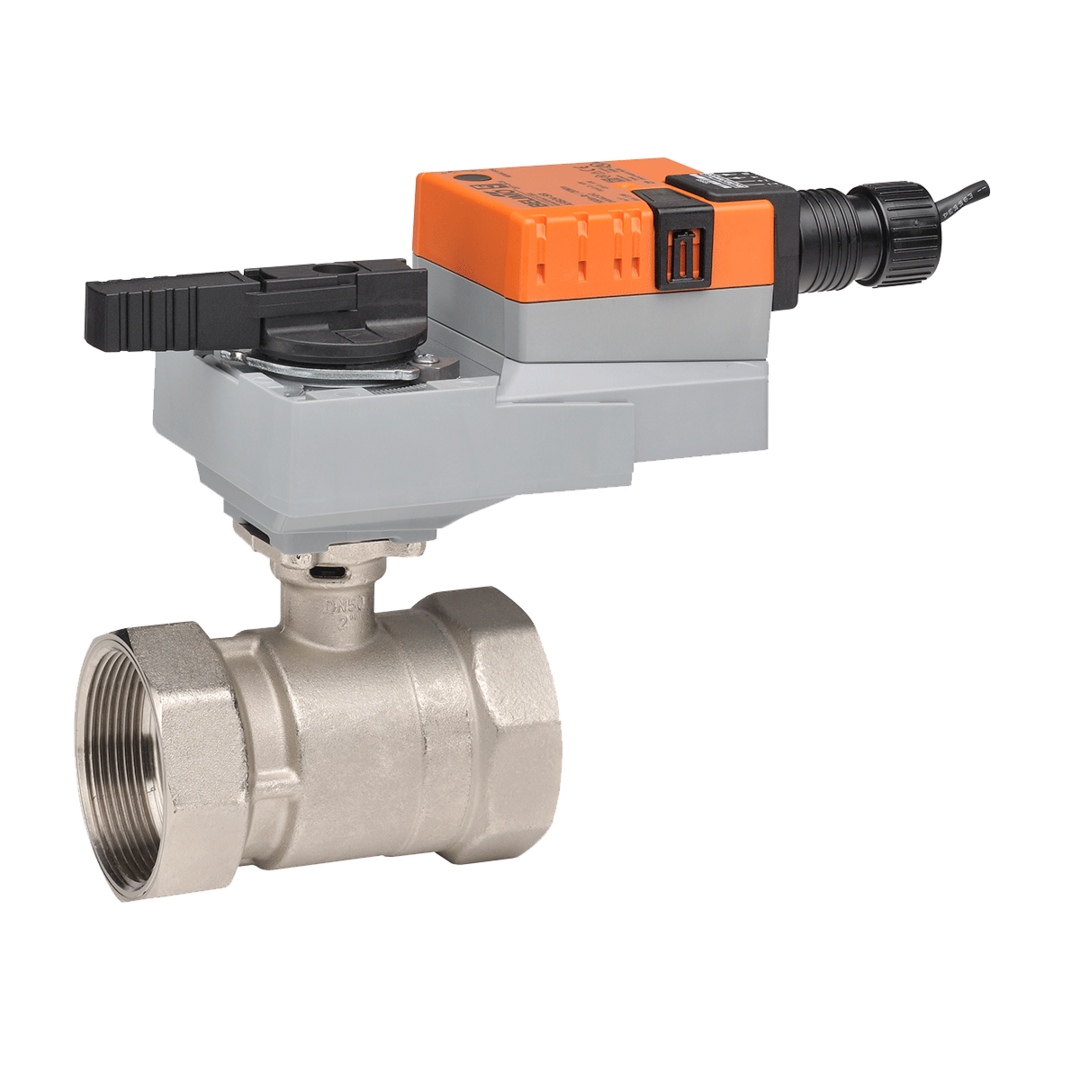

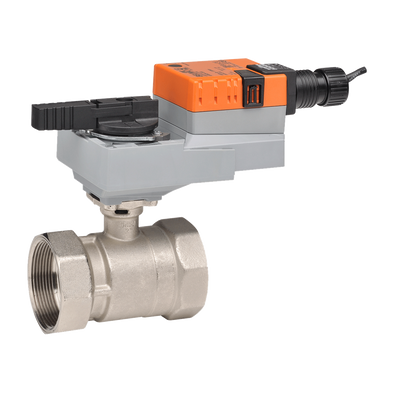

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for B225+LRB120-3

CCV | 1" | 2 Way | 30 Cv | w/ Non-Spg | 100-240V | Floating

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.


Item Number B225+LRB120-3
Brand Belimo
Control Input Floating
Control Valves Type CCV
Cv / GPM 30 Cv
Spring Return Non-Spring Return
Valve Size 1" - 2 Way
Voltage 100-240V

Documents and manuals

Belimo B225+LRB120-3 Documents
