B223+LRQX24-1 | CCV | 1" | 2 Way | 10 Cv | w/ Non-Spg | 24V | On/Off | Belimo

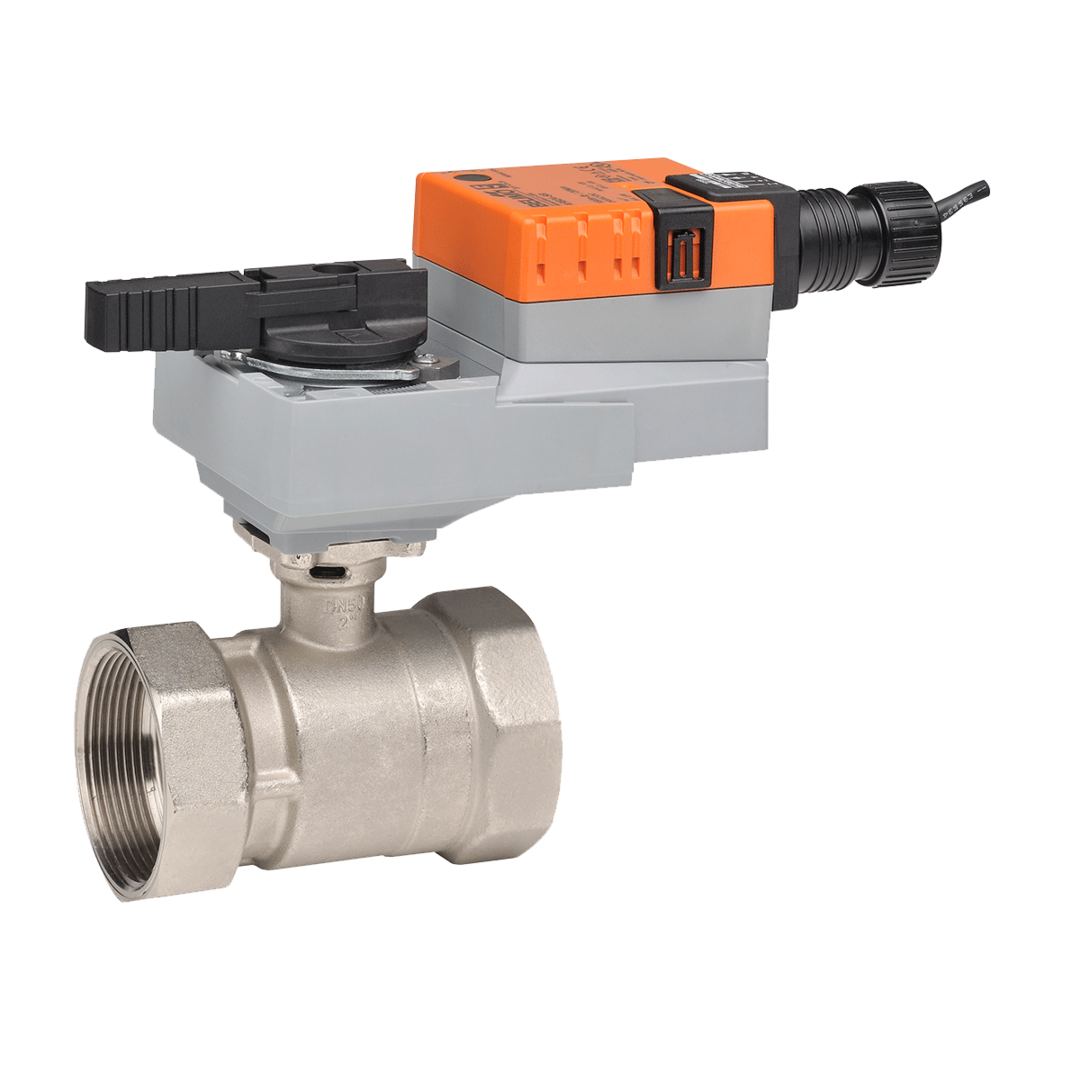

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B223+LRQX24-1
Documents and manuals
Belimo B223+LRQX24-1 Documents
Overview
Details for B223+LRQX24-1
CCV | 1" | 2 Way | 10 Cv | w/ Non-Spg | 24V | On/Off
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 10
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 1" [25]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 13 W
- Voltage AC/DC
- AC/DC 24 V
