B219VS+NMB24-3-X1 | Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Non-Spg | 24V | Floating | Belimo

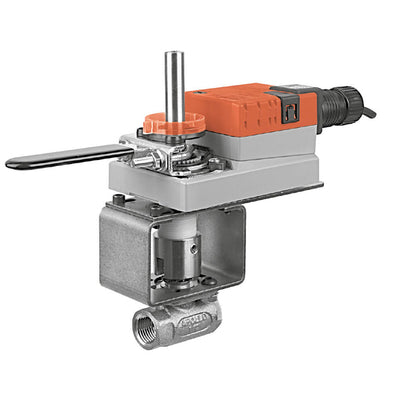

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B219VS+NMB24-3-X1
Overview
Details for B219VS+NMB24-3-X1
Ball Valve | 0.75" | 2 Way | 30 Cv | w/ Non-Spg | 24V | Floating
Application
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV Box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.
This valve is designed with MFT functionality which facilitates the use of various control input.
Specifications
- Valve specifications
- Angle of Rotation
- 95
- Controllable Flow Range
- 90B0 rotation
- Cv
- 30
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 0.75" [20]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.2 W
- Power Consumption (Running)
- 2 W
- Running Time (Motor)
- 95 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
