B209+TR24-3/300 US | CCV | 0.5" | 2 Way | 0.8 Cv | w/ Non-Spg | 24V | On/Off | Belimo

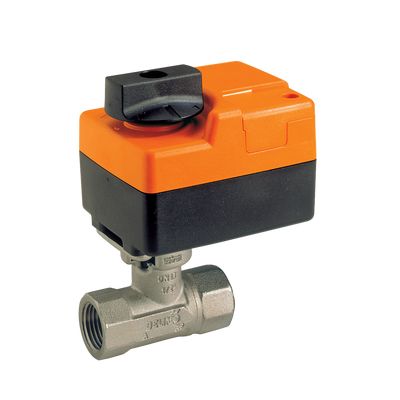

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to B209+TR24-3/300 US

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo B209+TR24-3/300 US Documents

Datasheet Installation Instructions More Info

Overview

Details for B209+TR24-3/300 US

CCV | 0.5" | 2 Way | 0.8 Cv | w/ Non-Spg | 24V | On/Off

CCV | 0.5" | 2 Way | 0.8 Cv | w/ Non-Spg | 24V | On/Off

Application

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable flow.

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 0.8
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 2-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 0.5" [15]
Actuator specifications
Actuator Type: Non fail-safe
Control Type: Floating/3-point
Degree of Protection: IP40 NEMA 1
Electrical Connection: cable
Manual Override: Push down handle
Power Consumption (Running): 1 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC 24 V
