ARB24-IP | Valve Actuator | 180 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo
$456.75
Brand: BelimoSKU: ARB24-IP
List Price
$1,015.00
$456.75
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Email

ARB24-IP | Valve Actuator | 180 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP | Belimo

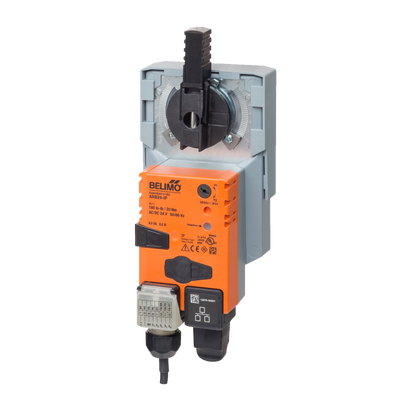

Belimo | ARB24-IP
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ARB24-IP
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Belimo ARB24-IP Documents

Datasheet Installation Instructions More Info

Overview

Details for ARB24-IP

Valve Actuator | 180 in-lb | Non-Spring Return | 24V | Cloud API | BACnet IP | Modbus TCP

Specifications

Actuator Type
Non fail-safe
Angle of Rotation
90
Control Type
  • Communicative
  • BACnet IP
  • Modbus TCP
  • Cloud
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
6 W
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
70...220 s
Safety Function
NO
Torque
20 Nm
Voltage AC/DC
AC/DC 24 V
