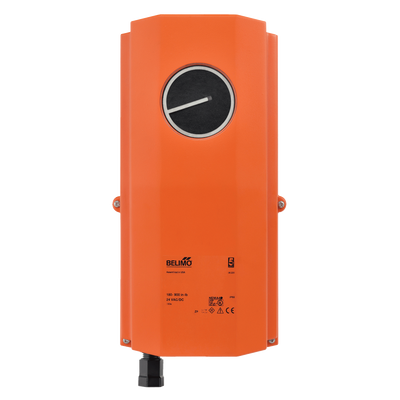

AMX24-3-T N4 | Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | NEMA 4 | Belimo

Damper Actuator | 160 in-lb | Non-Spg Rtn | 24V | On/Off/Floating Point | NEMA 4

Application

For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to ¾” in diameter by means of its universal clamp, self-centered default.

Operation
