AF120 US | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo (OBSOLETE)
$368.55
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: AF120 US
Availability: DISCONTINUED

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

AF120 US | Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off | Belimo (OBSOLETE)

Belimo | AF120 US

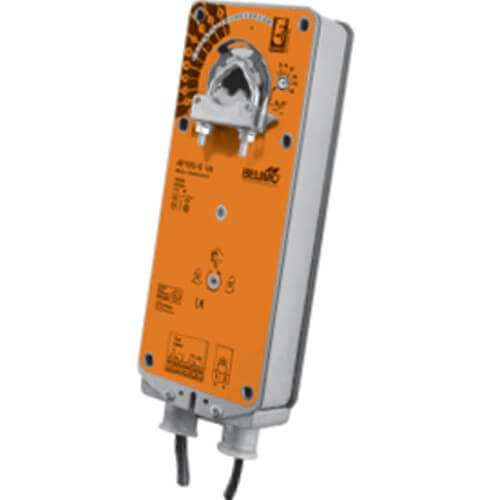

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to AF120 US

Documents and manuals

Belimo AF120 US Documents

Overview

Details for AF120 US

DISCONTINUED AND REPLACED WITH AFBUP

Damper Actuator | 180 in-lb | Spg Rtn | 24 to 240V (UP) | On/Off

Application

For On/Off, fail-safe control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. Control is On/Off from an auxiliary contact or a manual switch. The actuator is mounted directly to a damper shaft up to 1.05” in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. Maximum of two EF’s can be piggybacked for torque loads of up to 540 in-lbs. Minimum 3/4” diameter shaft and parallel wiring.

Operation

The AF series actuators provide true spring return operation for reliable fail-safe application and positive close off on air tight dampers. The spring return system provides consistent torque to the damper with, and without, power applied to the actuator. The AF series provide 95° of rotation and are provided with a graduated position indicator showing 0° to 95°. The AF has a unique manual positioning mechanism which allows the setting of any damper position within its 95° of rotation. The AF series actuators are shipped at 5° (5° from full fail-safe) to provide automatic compression against damper gaskets for tight shut-off. When power is applied to the AF series, the manual mechanism is released. The actuators will now try to close against the 0° position during its normal control operations. The manual override can also be released physically by the use of a crank supplied with the actuator. The AF uses a brushless DC motor which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing function to prevent damage to the actuator in a stall condition. The actuator may be stalled anywhere in its normal rotation without the need of mechanical end switches. The actuators are Double Insulated so a ground connection is not required. The AF120/230-S US version is provided with two built-in auxiliary switches. These SPDT switches are provided for safety interfacing or signaling, for example, for fan start-up. The switching function at the fail-safe position is fixed at 5°, the other switch function is adjustable between 25° to 85°.

Specifications

Item Number AF120 US
Brand Belimo
