22DTM-56 | Duct CO2+Temp+Hum Sensor BAC | Belimo

Belimo | 22DTM-56

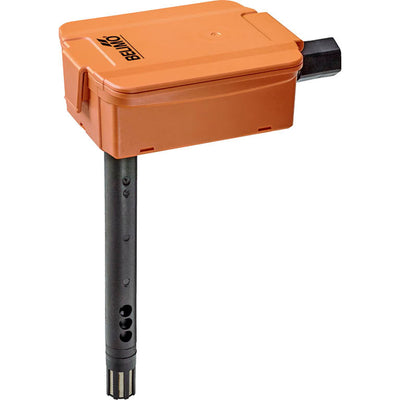

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 22DTM-56

Documents and manuals

Belimo 22DTM-56 Documents


Details for 22DTM-56

Duct CO2+Temp+Hum Sensor BAC

Duct CO2+Temp+Hum Sensor BAC


Duct Sensor CO₂ / Humidity / Temperature For combined measurement of CO₂, relative humidity and temperature in the duct. Dual channel CO₂ technology. The measured values are output via BACnet. NEMA 4X / IP65 rated enclosure.


Degree of Protection
Electrical Connection
Measured Values
  • COb
  • Temperature
  • Humidity
Measuring Range Humidity
  • Adjustable via BACnet
  • Default setting: 0...100% RH
Measuring Range Temperature
  • Adjustable via BACnet
  • Default setting: -32...122B0F [0...50B0C]
Measuring Range Velocity
  • Min. 1 ft/s [0.3 m/s]
  • Max. 40 ft/s [12 m/s]
Mounting Type
Single Point
Output Signal
  • BACnet
  • 0...5 V
  • 0...10 V
Probe Length
7" [180 mm]
Product Type
Sensor Type
Air quality
Voltage AC/DC
AC/DC 24 V
