PAM-1 | Relay | 10 Amp | Coil: 24 VAC or VDC / 120 VAC | ACI

Multi-Voltage Control Relay, 24 VDC, 24 VAC, & 120 VAC, Form 1C (SPDT), LED

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to PAM-1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

ACI PAM-1 Documents

Datasheet Installation Instructions More Info

Overview

Details for PAM-1

PAM-1 | Relay | 10 Amp | Coil: 24 VAC or VDC / 120 VAC

Description

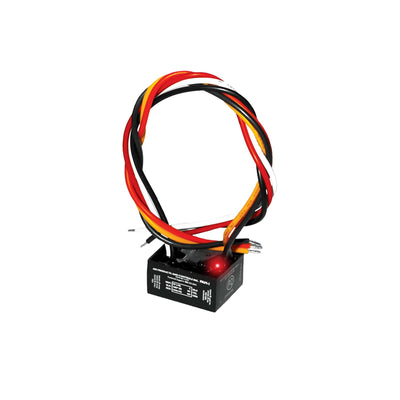

Air Products & Controls, Inc. PAM-1, PAM-2, and PAM-4 MultiVoltage Relay Modules are encapsulated multi-voltage devices. The PAM-1 relay provides 10.0 Amp Form-C contacts and may be energized by one of three input voltages: 24 VAC, 24 VDC, or 115 VAC. The PAM-2 relay provides 7.0 Amp Form-C contacts and may be energized by one of two input voltages: 12 VDC or 24 VDC. The PAM-4 relay provides 10.0 Amp Form-C contacts and may be energized by a wide voltage range from 9 VDC to 40 VDC.

A red LED is provided on both models. When illuminated, it indicates the relay coil is energized.

Either model may be mounted by using the double-sided adhesive tape, the self-drilling screw, or by placing loosely in a backbox.

PAM-1, PAM-2, and PAM-4 Relay Modules are ideal for applications where remote relays are required for control or status feedback. They are suitable for use with HVAC, temperature control, fire alarm, security, energy management, and lighting control systems.
