ESENSE-OUTDOOR | CO2 Carbon Dioxide Sensor | ACI
Carbon Dioxide Sensor, 0-2000 PPM, Heated Enclosure w/ Thermostat, 0-10V or 2-10V/4-20mA Output
Documents and manuals
ACI ESENSE-OUTDOOR Documents
Overview
Details for ESENSE-OUTDOOR

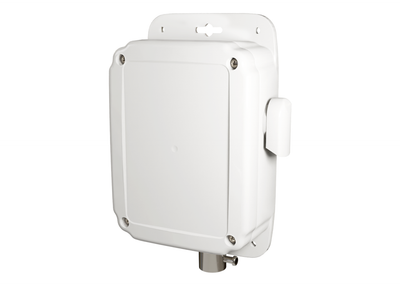

ESENSE-OUTDOOR | CO2 Carbon Dioxide Sensor
Description
The ESENSE-OUTDOOR combines excellent performance with a straightforward design to provide an analog output based on 0 to 2,000 ppm of carbon dioxide. The ESENSE-OUTDOOR is complete with a IP65 housing with side ventilation to support the flow of outdoor air. The ESENSE-OUTDOOR includes an in-line thermostat in order that heating of the housing only takes place when the outdoor temperature warrants the use of the energy to maintain an above freezing temperature in the housing. This device can be mounted to a wall, or other supporting structures, using the four corner mounting holes or the top and bottom mounting holes. The ESENSE-OUTDOOR is covered by ACI's Five (5) Year Limited Warranty.
Specifications
Item Number | ESENSE-OUTDOOR |
Brand | ACI |
Sensor | CO2 Carbon Dioxide |
