A/AN-BP | 10K ohm Type III | Bullet Probe Temperature Sensor
Description

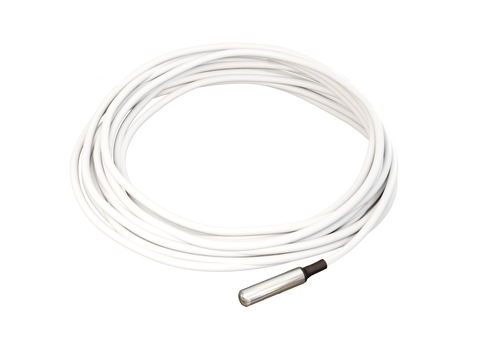

The ACI Thermistor Bullet Probe Series features a one inch stainless steel probe with two, 24 inch 22 AWG Etched Teflon colored lead wires to differentiate the different NTC sensor types. The sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The bullet style sensor is designed to monitor air temperatures and should not be fully submerged in water. This series can be ordered with different wire options and NIST certificates.
Applications
Roof Top Units, Air Handlers, Discharge Air/Supply/Return/Mixed Air Duct Temperature, Remote Temperature Sensing
Specifications
| Item Number | A/AN-BP |
| Brand | ACI |
| Element Type | 10K Type III |
| Sensing Element | Thermistor |
| Sensor Configuration | Bullet Probe |
| Sensor | Temperature |
