A/20K-SP | 20K ohm | Stainless Steel Wall Zone Plate with Override Temperature Sensor | ACI
Documents and manuals
ACI A/20K-SP Documents
Overview
Details for A/20K-SP

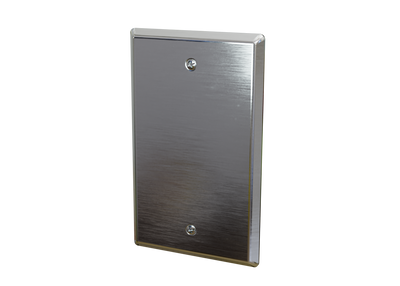

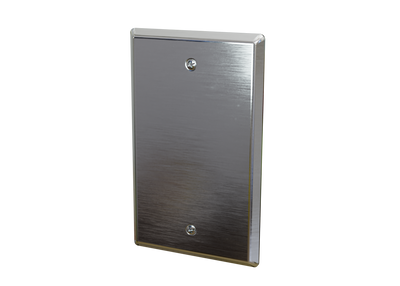

A/20K-SP | 20K ohm | Stainless Steel Wall Zone Plate with Override Temperature Sensor
The ACI Thermistor Wall Plate Series features a decorative, single gang brushed Stainless Steel or Smooth Satin Finished Anodized Aluminum wall plate with two, 14 inch 22 AWG Etched Teflon colored lead wires to differentiate the different NTC sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. A foam pad is included to insulate the sensor from thermal drafts within the wall, since they are designed to be mounted over a standard single gang junction box or directly over a hole in the wall with the use of drywall anchors to monitor ambient air temperatures in a space. Tamper Proof mounting screws are available upon request. Applications: Space Temperature Sensing, Decorative Wall Plate Applications, Tamper Proof Applications, Schools, Gymnasiums
Specifications
Item Number | A/20K-SP |
Brand | ACI |
Element Type | 20K |
Sensing Element | Thermistor |
Sensor Configuration | Wall Plate |
Sensor | Temperature |
