A/1K-NI-SP | RTD 1000 ohm (Nickel) | Stainless Steel Wall Zone Plate with Override Temperature Sensor | ACI
$17.40
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: ACISKU: A/1K-NI-SP
List Price
$48.00
$17.40
Availability: IN STOCK
Contact us for price breaks on large quantities!
Orders over $999 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

A/1K-NI-SP | RTD 1000 ohm (Nickel) | Stainless Steel Wall Zone Plate with Override Temperature Sensor | ACI

1, 000 Ohm Nickel RTD, Wall Plate, Stainless Steel

ACI | A/1K-NI-SP

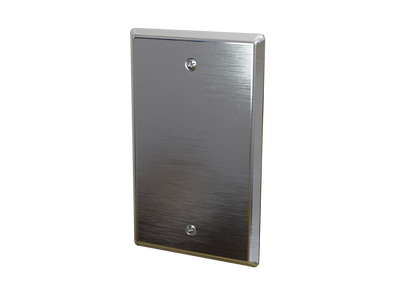

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/1K-NI-SP

Documents and manuals

ACI A/1K-NI-SP Documents

Overview

Details for A/1K-NI-SP

A/1K-NI-SP | RTD 1000 ohm (Nickel) | Stainless Steel Wall Zone Plate with Override Temperature Sensor

The ACI Nickel RTD Wall Plate Series features a decorative, single gang brushed Stainless Steel or Smooth Satin Finished Anodized Aluminum wall plate with two, 14 inch 22 AWG Etched Teflon colored lead wires. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. A foam pad is included to insulate the sensor from thermal drafts within the wall, since they are designed to be mounted over a standard single gang junction box or directly over a hole in the wall with the use of drywall anchors to monitor ambient air temperatures in a space. Tamper Proof mounting screws are available upon request. Applications: Space Temperature Sensing, Decorative Wall Plate Applications, Tamper Proof Applications, Schools, Gymnasiums

Specifications

Item Number A/1K-NI-SP
Brand ACI
Element Type 1000 ohm (Nickel)
Sensing Element RTD
Sensor Configuration Wall Plate
Sensor Temperature
