H952 | Current Sensor 0-5VDC/Relay Combo | Split Core | SPST | 9-12VDC RC | Veris

Hawkeye 0 to 30/60/120 A Input 0 to 5 VDC Output Analog Current Transducer with 12 VDC SPST Relay, Split-Core, 1.1 x 0.8 in

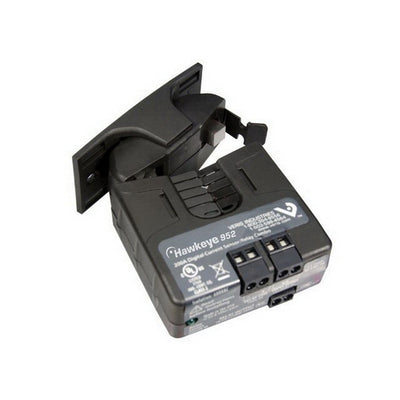

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H952

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Veris H952 Documents

Datasheet More Info

Overview

Details for H952

The Hawkeye H952 series provide accurate load trending information with a proportional 0 to 5 VDC output signal. This feature combined with an integrated command relay makes these products ideal for start/stop and status monitoring of motors. The relay is fully isolated from the current sensor and all relay connections are externally available for maximum flexibility.

Self-powered analog current transducer with integral start/stop command relay
Reduces the number of installed components, saves time and space
Self-gripping, split-core design for fast retrofit installation, no need to remove conductor
Reduces installation charges - one device to install for start/stop and status
No external power required for current sensor
Selectable factory calibrated ranges up to 120 A for increased flexibility and resolution
Induced from monitored conductor sensor power

Specifications

Item Number	H952
Brand	Veris
Application	Building Automation Systems
Current Core	Split Core
Current Measurement Range	0 - 30 A \| 0 - 60 A \| 0 - 120 A
Current Sensor type	Current Transducer; AC
Electrical Wiring Size	24 - 14 AWG (0.2 - 2.1 mm²)
Measurement Type	AC Current
Model	H952
Monitored Frequency Range	50 - 60 Hz
Monitored Wire Size	0.8" (21 mm)
Mounting	Split Core
Operating Humidity	10 - 90% RH; non-condensing
Operating Temperature	5 - 140 °F (-15 - 60 °C)
Output Specifications	0 - 5 VDC
Outputs	Analog output \| Relay
Product Certification	UL \| CE
Product Type	Sensor
Range	HX52 Series
Relay Coil Voltage	12 VDC
Relay Construction	Mechanical
Relay Contact Ratings	Resistive: 5 A @ 250 VAC \| Resistive: 5 A @ 30 VDC \| Inductive: 2 A @ 250 VAC \| Inductive: 2 A @ 30 VDC
Relay Poles/Throw	SPST
Sensor	Current Sensor (Hawkeye)
Warranty	5 years
