E50C2 | DIN Energy Meter | Modbus | Pulse Out | Veris
Alarm/Pulse/Modbus RTU Output Enhanced Power and Energy Meter

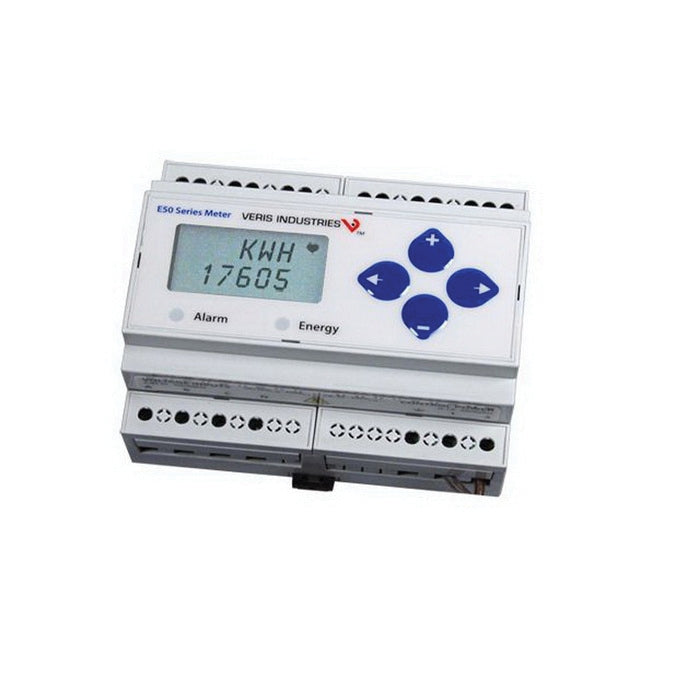

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to E50C2
Overview
Details for E50C2
The E5x series DIN rail meter combines exceptional performance and easy installation to deliver a cost-effective solution for power monitoring applications. Combinations of serial communication, pulse output and phase alarms are provided to suit a wide variety of applications. In this way, a facility administrator can track all energy data, ensuring accuracy in billing and crediting. They are also useful for monitoring loads that use regenerative braking.
- Modbus output model offer added flexibility for system integration
- High reliability - ANSI C12.20 0.2% accuracy, IEC 62053-22 Class 0.2S
- Easy installation - DIN rail or screw mounting options
- Multiple applications - real energy output and phase loss alarm output
- Wide CT compatibility - compatible with CTs from 5 to 32000 A
Specifications
| Item Number | E50C2 |
| Brand | Veris |
| Accuracy | +/- 0.2% |
| Communication | ModBus (RTU) |
| Dimensions | 3.6" (91 mm) W x 4.2" (107 mm) W x 2.3" (59 mm) H |
| Display Type | LCD |
| Environmental Conditions | Humidity Range: Less Than 95% RH Non-Condensing; Storage Temperature: -40 to 158 °F; Altitude of Operation: 3000 m |
| Frequency Rating | 50 - 60 Hz |
| Metering Product Family | E50 Power Meter |
| Monitored Voltage Range | 90 - 600 VAC |
| Mounting | Din-Rail |
| Operating Temperature | -22 - 158 °F |
| Output Specifications | 30 VAC/VDC; 100 mA Maximum Alarm Output (NC) and Pulse Output (NO); RS-485 2-Wire Modbus RTU |
| Power Monitoring | E5x Series Power and Energy Meters |
| Product Type | Enhanced Power and Energy Meter |
| Range | E50 |
