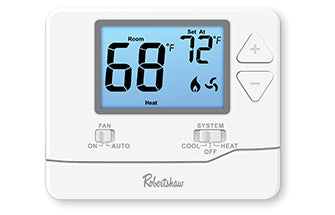

RS8110 | Non-Programmable Thermostat 1H/1C | Robertshaw
Contractors and Home Owners can now have easy, yet powerful and reliable single-Stage heating and cooling control in a simple, modern design with the Robertshaw model RS8110 non-programmable wall thermostat backed by industry leading 6-year warranty. A large easy-to-read 4.6 square-inch clear digital LCD backlit display. Quick-access menu buttons allow for very easy adjustments. Battery change indicator alert makes changing batteries a breeze with our front load access battery compartment, no need to remove thermostat from base. Used for Single Stage - 1 Heat / 1 Cool HVAC systems. For use with 24 Vac systems: Central gas, electric or oil furnaces, heat pump systems without auxillary or emergency heat, 750 Millivolt. Does not work with Multi-Stage systems or 120/240v electric baseboard.
Documents and manuals
Robertshaw RS8110 Documents
Overview
Details for RS8110
RS8000 Pro-Series Non-Programmable Wall Thermostat
Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS8110 non-programmable wall thermostat.Single Stage - 1 Heat / 1 Cool• Large terminal blocks for easy installation• Universal sub-base• Quick-access menu button• Contractor/technician setup menu• Large, easy-to-read 4.6-square-inch blue backlit display• 24V AC Powered OR Battery Operation (Included)• 6Year Limited Warranty• Easy-access front-load battery compartment• Adjustable temperature differential (swing) for energy optimization and maximum system life• Adjustable room temperature calibration• Adjustable setpoint limits• Five-minute selectable on/off compressor delay protection for short-cycling prevention• Separate O and B terminals
• UPC 662013228194
Specifications
| Item Number | RS8110 |
| Brand | Robertshaw |
| 0986-1 | MAPLE CHASE |
| 0986 | MAPLE CHASE |
| 0988-1 | MAPLE CHASE |
| 100-401 | ROBERTSHAW CLIMATE |
| 100-40A | ROBERTSHAW CLIMATE |
| 100-450 | ROBERTSHAW CLIMATE |
| 100-502 | ROBERTSHAW CLIMATE |
| 100-602 | ROBERTSHAW CLIMATE |
| 100-60B | ROBERTSHAW CLIMATE |
| 1000NC | BRAEBURN |
| 1020 | BRAEBURN |
| 1020NC | BRAEBURN |
| 1025NC | BRAEBURN |
| 105-450 | ROBERTSHAW CLIMATE |
| 200-401 | ROBERTSHAW CLIMATE |
| 200-450 | ROBERTSHAW CLIMATE |
| 200-501 | ROBERTSHAW CLIMATE |
| 200-602 | ROBERTSHAW CLIMATE |
| 3020 | BRAEBURN |
| 32-571-850 | ROBERTSHAW CLIMATE |
| 32-583-050 | ROBERTSHAW CLIMATE |
| 32-592-538 | ROBERTSHAW CLIMATE |
| 32-592-550 | ROBERTSHAW CLIMATE |
| 32-623-050 | ROBERTSHAW CLIMATE |
| 32-623-051 | ROBERTSHAW CLIMATE |
| 32-662-542 | ROBERTSHAW CLIMATE |
| 32-732-550 | ROBERTSHAW CLIMATE |
| 32-741-850 | ROBERTSHAW CLIMATE |
| 32-741-851 | ROBERTSHAW CLIMATE |
| 32-773-332 | ROBERTSHAW CLIMATE |
| 32-831-851 | ROBERTSHAW CLIMATE |
| 34-074-150 | ROBERTSHAW CLIMATE |
| 34-423-240 | ROBERTSHAW CLIMATE |
| 34-424-044 | ROBERTSHAW CLIMATE |
| 34-434-065 | ROBERTSHAW CLIMATE |
| 34-443-545 | ROBERTSHAW CLIMATE |
| 34-443-597 | ROBERTSHAW CLIMATE |
| 34-464-159 | ROBERTSHAW CLIMATE |
| 34-467-740 | ROBERTSHAW CLIMATE |
| 34-584-150 | ROBERTSHAW CLIMATE |
| 34-703-524 | ROBERTSHAW CLIMATE |
| 34-703-567 | ROBERTSHAW CLIMATE |
| 34-959-5B2 | ROBERTSHAW CLIMATE |
| 34902 | ROBERTSHAW CLIMATE |
| 34903 | ROBERTSHAW CLIMATE |
| 400-404 | ROBERTSHAW CLIMATE |
| 400-420 | ROBERTSHAW CLIMATE |
| 500-100 | ROBERTSHAW CLIMATE |
| 500-101 | ROBERTSHAW CLIMATE |
| 500-102 | ROBERTSHAW CLIMATE |
| 500-104 | ROBERTSHAW CLIMATE |
| 500-105 | ROBERTSHAW CLIMATE |
| 500-106 | ROBERTSHAW CLIMATE |
| 500-107 | ROBERTSHAW CLIMATE |
| 500-112 | ROBERTSHAW CLIMATE |
| 500-116 | ROBERTSHAW CLIMATE |
| 500-400 | ROBERTSHAW CLIMATE |
| 500-401 | ROBERTSHAW CLIMATE |
| 500-404 | ROBERTSHAW CLIMATE |
| 500-406 | ROBERTSHAW CLIMATE |
| 500-407 | ROBERTSHAW CLIMATE |
| 500-410 | ROBERTSHAW CLIMATE |
| 500-414 | ROBERTSHAW CLIMATE |
| 501-112 | ROBERTSHAW CLIMATE |
| 501-405 | ROBERTSHAW CLIMATE |
| 501-40E | ROBERTSHAW CLIMATE |
| 501-410 | ROBERTSHAW CLIMATE |
| 60A040003 | ROBERTSHAW CLIMATE |
| 60A140003 | ROBERTSHAW CLIMATE |
| 65A-022-100 | ROBERTSHAW CLIMATE |
| 65A-943-470 | ROBERTSHAW CLIMATE |
| 8400 | ROBERTSHAW CLIMATE |
| 8401 | ROBERTSHAW CLIMATE |
| 8405-1 | ROBERTSHAW CLIMATE |
| 8405 | ROBERTSHAW |
| 8406-1 | ROBERTSHAW CLIMATE |
| 8406 | ROBERTSHAW |
| 9200H | ROBERTSHAW CLIMATE |
| 9200V | ROBERTSHAW CLIMATE |
| 9204H | ROBERTSHAW CLIMATE |
| 9204V | ROBERTSHAW CLIMATE |
| 9206H | ROBERTSHAW CLIMATE |
| 9206V | ROBERTSHAW CLIMATE |
| 9400 | ROBERTSHAW CLIMATE |
| 9401 | ROBERTSHAW CLIMATE |
| 9405 | ROBERTSHAW CLIMATE |
| 9500 | ROBERTSHAW CLIMATE |
| 9505 | ROBERTSHAW CLIMATE |
| 9550 | ROBERTSHAW CLIMATE |
| 984-1 | ROBERTSHAW CLIMATE |
| 984-1R | ROBERTSHAW CLIMATE |
| 986-1 | ROBERTSHAW CLIMATE |
| 986-1R | ROBERTSHAW CLIMATE |
| 988-1 | ROBERTSHAW CLIMATE |
| 988-1R | ROBERTSHAW CLIMATE |
| CM200 | ROBERTSHAW CLIMATE |
| CM260 | ROBERTSHAW CLIMATE |
| CM60A-140-003 | ROBERTSHAW CLIMATE |
| CM60A040003 | ROBERTSHAW CLIMATE |
| CM61C-000-000 | ROBERTSHAW CLIMATE |
| CM61C-000-0 | ROBERTSHAW CLIMATE |
| CM61C-100-000 | ROBERTSHAW CLIMATE |
| CM61C-100-003 | ROBERTSHAW CLIMATE |
| CM61C-100-0 | ROBERTSHAW CLIMATE |
| CM64U-647-303 | ROBERTSHAW CLIMATE |
| CM64U-647-503 | ROBERTSHAW CLIMATE |
| CM64U-647-5 | ROBERTSHAW CLIMATE |
| CM64U647303 | ROBERTSHAW CLIMATE |
| CM66M-010-000 | ROBERTSHAW CLIMATE |
| Dimensions | 4.7 x3.8 x 1in (119.6 x 97.6 x 26mm) |
| Factory Part Number | RS8110 |
| Mounting Type | Wall or junction box |
| Power Source | 24V AC (18 to 30V AC); 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included) |
| PS2110 | PERFECT SENSE |
| RS2110 | ROBERTSHAW CLIMATE |
| RS331N | ROBERTSHAW CLIMATE |
| RS4110 | ROBERTSHAW CLIMATE |
| Series Application | Single-Stage 1 Heat / 1 Cool Non-Programmable |
| T32-1041 | ROBERTSHAW CLIMATE |
| T32-1042 | ROBERTSHAW CLIMATE |
| T32-1043 | ROBERTSHAW CLIMATE |
| T32-1044 | ROBERTSHAW CLIMATE |
| T40-0450 | ROBERTSHAW CLIMATE |
| T40-1143 | ROBERTSHAW CLIMATE |
| T50-1041 | ROBERTSHAW CLIMATE |
| T50-1042 | ROBERTSHAW CLIMATE |
| Temperature Range | 41°F to 95°F (5°C to 35°C) |
| Terminals | Rh; Rc; C; Y; W; G; O; B |
| TH5110D1006 | HONEYWELL |
| TX400 | ROBERTSHAW CLIMATE |
