710-501 | GAS VALVE 7000MVLC,LO CAP MV VALVE | Robertshaw

The Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.

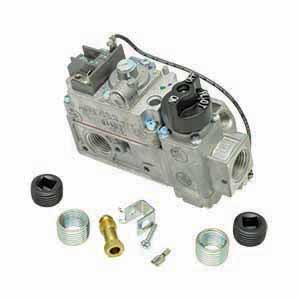

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 710-501

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw 710-501 Documents

Robertshaw 2024 HVAC Heating Catalog 710 Series Low Capacity Gas Heating Controls Manual 710 Series Low Capacity Gas Valves Sell Sheet Robertshaw Commercial Catalog 150-2634 More Info

Overview

Details for 710-501

710 Series Gas Valves

710 Series - Low CapacityThe Robertshaw® 710 Series Low Capacity Gas Valves feature an extremely compact control designed for low capacity and limited space applications. Features include three-position outlets, multi-positional capability and component replaceability.Features and Benefits

Low capacity with 3-13/16”H x 4-21/32”L x 1-29/32” W dimensions
Gas cock dial marking Off - Pilot - On
Ambient temperature of -40°F to 175°F
Pilot outlet 1/4” tubing
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
Multiple actuators available
RoHS compliant

Specifications

Item Number	710-501
Brand	Robertshaw
038251A	MARTIN IND.
05-02-00238	JOHNSON GAS APPL.
05-02-00239	JOHNSON GAS APPL.
18735A	UNKNOWN
301966	WELLS MFG.
3551	ATWOOD MOBILE PROD.
36C03U-333	WHITE-RODGERS
36C03U333	WHITE-RODGERS
373-715-414	ROBERTSHAW
45307	WELLS MFG.
506306	UNKNOWN
60-501	HEAT-N-GLO
63425	UNI-LINE
7000MVLC	ROBERTSHAW
7000MVRLC-LP	ROBERTSHAW
70089	LOUISVILLE TIN & STOVE
70091	LOUISVILLE TIN & STOVE
704-705-414	ROBERTSHAW
704-715-400	ROBERTSHAW
704-715-415	ROBERTSHAW
704705400	LANG MFG.CO.
704705410	UNKNOWN
704705414	LANG MFG.CO.
704705416	UNKNOWN
704715400	UNKNOWN
704715414	PMI
704815400	UNKNOWN
704815414	PMI
707-702-402	ROBERTSHAW
707-705-400	ROBERTSHAW
707705400	UNI-LINE
707715400	UNKNOWN
707815400	UNKNOWN
710-C501	UNI-LINE
711-702-403	ROBERTSHAW
711-702-412	ROBERTSHAW
711-702-418	ROBERTSHAW
711-702-427	ROBERTSHAW
711-702-428	ROBERTSHAW
711-702-725	ROBERTSHAW
711-703-437	ROBERTSHAW
711-706-440	ROBERTSHAW
711-712-403	ROBERTSHAW
711-712-412	ROBERTSHAW
711-712-418	ROBERTSHAW
711-712-428	ROBERTSHAW
711-713-437	ROBERTSHAW
711-716-440	ROBERTSHAW
711-716-443	ROBERTSHAW
711-717-444	ROBERTSHAW
711-717-445	ROBERTSHAW
711712403	Invensys Climate Controls
711716443	MAJESTIC
713482	WOLF RANGE
715-705-400	ROBERTSHAW
715-706-441	ROBERTSHAW
715-715-400	ROBERTSHAW
715-716-441	ROBERTSHAW
715-717-442	ROBERTSHAW
715705400	WELLS MFG.
715705414	UNKNOWN
715705420	UNKNOWN
715715400	WELLS MFG.
715815400	WELLS MFG.
720141	WOLF RANGE
72125	UNKNOWN
722159	PRE-MARK INTL(P M I FOOD EQUIP)
729-702-405	ROBERTSHAW
729-702-412	ROBERTSHAW
729-702-41	ROBERTSHAW
729-712-405	ROBERTSHAW
729-712-412	ROBERTSHAW
729705400	UNKNOWN
730-702-438	ROBERTSHAW
730-712-438	ROBERTSHAW
731-702-409	ROBERTSHAW
731-703-439	EMPIRE COMFORT SYS.
731-712-409	ROBERTSHAW
731-713-439	ROBERTSHAW
737-705-400	ROBERTSHAW
737-715-400	ROBERTSHAW
737-715-414	ROBERTSHAW
737705400	DTI COMPANY
737715400	UNKNOWN
737715414	UNI-LINE
737815400	UNKNOWN
737815414	UNI-LINE
737835414	UNKNOWN
741705414	UNKNOWN
742-702-412	ROBERTSHAW
742-702-427	ROBERTSHAW
742-703-431	ROBERTSHAW
742-712-412	ROBERTSHAW
742-713-431	ROBERTSHAW
745-712-427	ROBERTSHAW
748-702-402	ROBERTSHAW
749-702-425	ROBERTSHAW
749-712-425	ROBERTSHAW
75-29-110C	UNKNOWN
750-702-423	ROBERTSHAW
750-702-433	ROBERTSHAW
750-703-437	ROBERTSHAW
750-712-433	ROBERTSHAW
750-713-437	ROBERTSHAW
785815416	WILBUR CURTIS
80505-01	LANG MFG.CO.
9-1343-001	DUO-THERM
9322101	EMPIRE COMFORT SYS.
932231	EMPIRE COMFORT SYS.
93231	UNKNOWN
Application	Space heaters replaces B-67
B60YS54B	ITT/GENERAL CONTROL
B67AA57	ITT/GENERAL CONTROL
Capacity	70;000 BTU
Capillary Length	NA
Electrical Rating	250 mV to 750 mV
Factory Part Number	7000 MVLC
Inlet Size	1/2"
L36-653	JOHNSTONE SUPPLY
Outlet Size	1/2"
P295001A	UNKNOWN
P304800	UNKNOWN
Pressure Regulation	NA
R1210A	EMPIRE COMFORT SYS.
R1830	EMPIRE COMFORT SYS.
R2497	EMPIRE COMFORT SYS.
R2501	EMPIRE COMFORT SYS.
Reducer Bushing (NPT)	(2) 1/2" x 3/8"
RV68A02	ITT/GENERAL CONTROL
RV68S06	ITT/GENERAL CONTROL
Series Application	Millivolt Low Capacity
VS8194F1113	HONEYWELL
