700-515 | GAS VALVE 7000BMVR-LP,MV VALVE | Robertshaw

700 Series - Millivolt The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

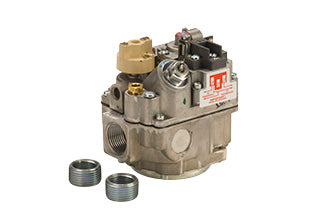

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-515

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw 700-515 Documents

Frymaster Appliance Controls Sell Sheet Robertshaw 2024 HVAC Heating Catalog 700 Series Gas Heating Controls Manual Robertshaw Commercial Catalog 150-2634 More Info

Overview

Details for 700-515

700 Millivolt Series Gas Valves

700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from smallcapacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Terminal type combination screw/spade
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant

Specifications

Item Number	700-515
Brand	Robertshaw
0365-1	IMPERIAL
1174	IMPERIAL
1182153	SOUTH BEND RANGE
1909	DEAN
3 Position Outlet Side (FPT) with Plugs	Straight-Thru
3 Position Outlet Straight-Thru (FPT)	3/4"
319852458	THERMATEK
341702457	LENNOX INDUSTRIES
341812457	FRYMASTER
342-702-425	ROBERTSHAW
342702425	DEAN
342702458	CECILWARE/COMMODORE
342812425	DEAN
342812458	UNKNOWN
343-702-425	ROBERTSHAW
343-702-425A	ROBERTSHAW
343-702-456	ROBERTSHAW
343-702-458	ROBERTSHAW
343-812-425	ROBERTSHAW
343-812-425A	ROBERTSHAW
343702425	LENNOX INDUSTRIES
343702456	FRYMASTER
343702457	GARLAND
343702458	PMI
3437024B1	UNKNOWN
343812425	AMERICAN RANGE
343812425A	UNI-LINE
343812456	FRYMASTER
343812457	UNKNOWN
343812458	HENNEY PENNEY
343812458A	IMPERIAL
348392-2	PMI
359-702-446	ROBERTSHAW
359-702-456	ROBERTSHAW
359-702-457	ROBERTSHAW
359702425	AVALON DONUT EQUIPMENT
359702446	GARLAND
359702457	FRYMASTER
359702458	ANETSBERGER
359702473	PMI
359702490	PMI
359812425	UNKNOWN
359812458	BAKERS PRIDE
359812473	UNKNOWN
359812490	UNKNOWN
359812490A	PRE-MARK INTL(P M I FOOD EQUIP)
36C03U-400	WHITE-RODGERS
36C03U400	WHITE-RODGERS
4038124A1	PMI
410841-23	HOBART CORP
4511-07512	PVI IND.INC.
4B1702425	DEAN
4B5702446	KEATING/KKO INC.
4B5812458	UNKNOWN
4D2702458	PERFECTION SCHWANK
4E1702458	PERFECTION SCHWANK
63300	UNI-LINE
7000AMVR-LP	ROBERTSHAW
7000BMVR-LP	ROBERTSHAW
80005-01	THERMATEK
8070755	FRYMASTER
8070756	FRYMASTER
8072424	FRYMASTER
8072425	FRYMASTER
8261646	FRYMASTER
84171-21	PMI
A80103	AMERICAN RANGE
Capacity	485;000 BTU
Electrical Rating	250mV to 750mV
F807-0115P	GARLAND
F810-0014P	GARLAND
Factory Part Number	7000BMVR-LP
Inlet Size	3/4"
L348A	CECILWARE/COMMODORE
Pressure Regulation	10.0" WC LP Gas
R3124A	BAKERS PRIDE
Reducer Bushing (NPT)	2
Series Application	Millivolt Diaphragm/Solenoid Gas Valve
VS820A1336	HONEYWELL
VS820H1125	HONEYWELL
VS820H1190	HONEYWELL
VS820V1030	HONEYWELL
