700-507 | GAS VALVE 7000BMVR-S7C,MV VALVE | Robertshaw

The Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.

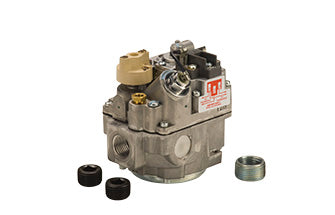

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 700-507

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Robertshaw 700-507 Documents

Robertshaw 2024 HVAC Heating Catalog 700 Series Gas Heating Controls Manual Robertshaw Commercial Catalog 150-2634 More Info

Overview

Details for 700-507

700 Millivolt Series Gas Valves

700 Series - MillivoltThe Robertshaw® 700 Series Millivolt Gas Valves are wall thermostat actuated combination controls which provide installation flexibility from furnaces to swimming pool applications. The complete line of 700-500 millivolt gas valves offers a wide range of replacements from small capacity 3/8” pipe to high capacity 1” pipe up to 720,000 BTU usage.Features and Benefits

Gas cock dial marking Off - Pilot - On
Pilot outlet 1/4” tubing
Ambient temperature of -40°F to 175°F
Terminal type combination screw/spade
Maximum inlet pressure 14” WC (0.5 PSI)
Standard NEMA terminals
Inlet filtered screen
Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures
RoHS compliant

Specifications

Item Number	700-507
Brand	Robertshaw
003899F	RHEEM
110841-6	VULCAN HART/P M I
110841-7	VULCAN HART/P M I
150103-31-01	HAYWARD COMFORTZONE
1501033201	HAYWARD COMFORTZONE
1501403101	HAYWARD COMFORTZONE
222-37786-01	BRADFORD-WHITE
222-37786-02B	BRADFORD-WHITE
222-37786-04B	BRADFORD-WHITE
3 Position Outlet Side (FPT) with Plugs	Straight-Thru
3 Position Outlet Straight-Thru (FPT)	3/4"
3200134	AMERICAN APPL.MFG.CR
3200650	MOR-FLO INDUST.
342-701-410	ROBERTSHAW
342-811-410	ROBERTSHAW
342701410	UNI-LINE
342811410	UNI-LINE
343702480	MOR-FLO INDUST.
343811462	STATE IND.INC.
343811477	BRADFORD-WHITE
343811487	BRADFORD-WHITE
343811494	HAYWARD COMFORTZONE
343812492	HAYWARD COMFORTZONE
359-701-410	ROBERTSHAW
359-701-430	ROBERTSHAW
359-701-443	ROBERTSHAW
359-702-447	ROBERTSHAW
359-705-444	ROBERTSHAW
359701410	RAYPAK INC.
359701443	PMI
359702447	WELLS MFG.
359811410	RAYPAK INC.
359811430	WELLS MFG.
359811430A	WELLS MFG.
359811443	PMI
359811451	PACFAB
359812447	WELLS MFG.
36C04U-307	WHITE-RODGERS
377811462	UNKNOWN
37786-04	BRADFORD-WHITE
37786-04B	BRADFORD-WHITE
38E03	LENNOX INDUSTRIES
415-701-413	ROBERTSHAW
42193	WELLS MFG.
42205	WELLS MFG.
434-701-422	ROBERTSHAW
434-702-429	ROBERTSHAW
449811422	RHEEM
471192	PACFAB
4E1701464	RAYPAK INC.
4E1701474	HAYWARD COMFORTZONE
4E1702467	HAYWARD COMFORTZONE
4E1711494	UNKNOWN
4E1712493	UNKNOWN
4E1811474	TELEDYNE STILL/LAARS
4E1811494	UNKNOWN
4E1812467	HAYWARD COMFORTZONE
4E1812493	HAYWARD COMFORTZONE
4F1701474	HAYWARD COMFORTZONE
4F1811464	UNKNOWN
4F1811474	UNKNOWN
4F1812467	UNKNOWN
600945	RAYPAK INC.
63287	UNI-LINE
700-C508	UNI-LINE
7000AMVR-S7C	ROBERTSHAW
7000BMVR-LP-S7C	STATE IND.INC.
7000BMVR-S7C	ROBERTSHAW
7201360	STATE IND.INC.
7201370	STATE IND.INC.
8070309	FRYMASTER
8070760	FRYMASTER
8071020	FRYMASTER
8072426	FRYMASTER
Capacity	240;000 BTU
Comments	Slow opening feature for soft ignition
Electrical Rating	250mV to 750mV
Factory Part Number	7000BMVR-S7C
Inlet Size	1/2"
P214900	WILLIAMS FURNACE
P215000	WILLIAMS FURNACE
Pressure Regulation	3.5" WC Natural Gas
Reducer Bushing (NPT)	1
Series Application	Millivolt Diaphragm/Solenoid Gas Valve
