ZP6-ESP iO HVAC Controls: Control Your HVAC System with Precision and Efficiency The ZP6-ESP from iO HVAC Controls is a versatile solution for advanced zone control in HVAC systems. This 6-zone controller offers up to 4 heating and 2 cooling zones, providing precise temperature management in commercial and industrial settings. With a compact design and intuitive interface, the ZP6-ESP is easy to install and operate. It features advanced control algorithms that optimize system performance, reducing energy consumption and increasing comfort. Key Features: * 6 zones with up to 4 heating and 2 cooling zones * Intuitive interface for hassle-free operation * Advanced control algorithms for energy efficiency and comfort * Compatible with a wide range of HVAC equipment Applications: * Commercial buildings: Offices, retail stores, restaurants * Industrial facilities: Warehouses, factories, workshops * Healthcare institutions: Hospitals, clinics, nursing homes * Educational facilities: Schools, universities, libraries Trust our HVAC supply store for the Best Prices and Fast Shipping! Upgrade to the ZP6-ESP iO HVAC Controls today for unparalleled control and comfort in your HVAC system. Visit our online store or contact our team for expert advice and personalized solutions.

Six Zone (4H/2C) Panel w/ ESP

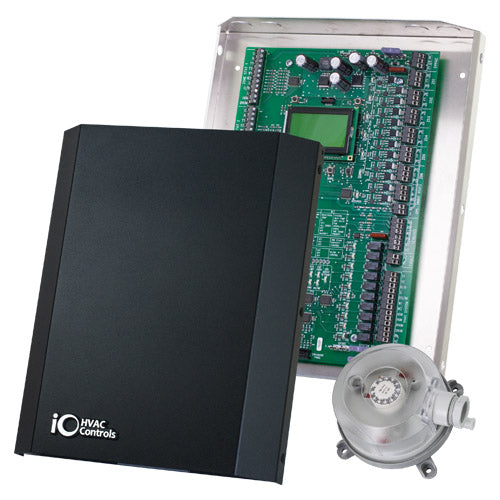

The ZP6-ESP is a 6 zone panel that integrates our award winning ESP technology to completely eliminate the need to install a bypass damper. This 4H/2C zone panel comes with a static pressure sensor. The system works like any standard zone control system with one exception; a static pressure sensor continuously monitors the system static pressure. If the static pressure goes above setpoint, the ESP panel will power the non-calling zone dampers open just enough to relieve the excess pressure. Tests indicate that bleeding a small amount of conditioned air for a short time into non-calling zones has little to no impact on the zone temperature.

The panel can be used with single-stage, multi-stage, heat pump and dual fuel equipment. Programmable LCD and slide switch configuration makes setup quick and easy. A wide range of control options provide ultimate application flexibility including adjustable high/low limits, adjustable high/low balance point, stage timing, capacity control and priority cooling control.

Features and Benefits:

•  6 zones expandable up to 12
• Auto changeover
• Cooling priority or majority wins
• Twenty minute time share option
• Optional night thermostat
• Humidification/Dehumidification pass-throughs
• Staging by zone thermostat or stage timer
• Purge cycle option
• DK and BK terminals work with most variable speed blowers
• For use with 3 wire dampers
• Adjustable high and low limit
• Adjustable high and low balance point
• Equipment fault pass-through indicator
• LCD displays: Discharge air temperature, return air temperature and outdoor temperature

Warranty: 10 years
