E-P, I-P Transducer: XEC-3001 by KMC Controls The XEC-3001 E-P, I-P Transducer from KMC Controls is a highly accurate and reliable device designed to convert electrical or pneumatic pressure signals to proportional current or pneumatic outputs. Engineered with precision, this transducer provides accurate and stable signal conversion, making it ideal for various industrial applications. Key Features: - Precise and linear conversion of electrical or pneumatic pressure to proportional current or pneumatic outputs - Rugged construction and durable materials ensure long-lasting performance in demanding environments - Adjustable output range allows for customization to specific application requirements - Wide pressure range and operating temperature for versatile use in various conditions Applications: - Pressure monitoring and control in industrial automation systems - Precision measurement and control of pneumatic and hydraulic systems - Interfacing electrical and pneumatic devices in process control applications - Aerospace and defense applications requiring accurate pressure sensing and conversion At our HVAC supply store, we take pride in offering the best prices and swift shipping on the XEC-3001 E-P, I-P Transducer. Contact us today to experience the exceptional quality and unparalleled service that sets us apart. Upgrade your industrial operations with the precision and reliability of the XEC-3001 Transducer!

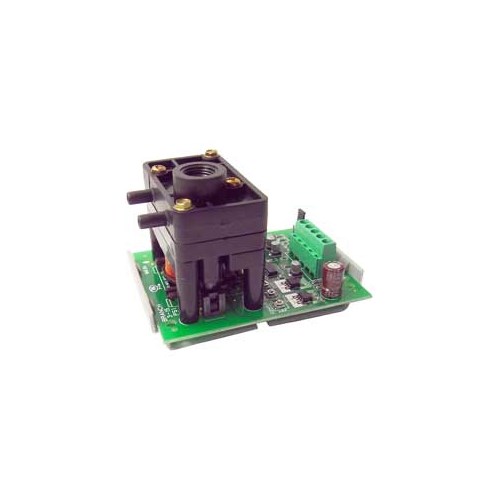

The KMC XEC-3001/3004 E/I-P Transducer converts an analog voltage (E) or current (I) signal into a linear pneumatic (P) output signal for accurate positioning of damper and valve actuators used in HVAC systems.

The transducer is not a position sensitive device. It provides a direct output feedback signal for branch line pressure.

 The unit can be powered by either 24 VAC or 24 VDC. Three selectable input ranges are available. The analog voltage signal may be either 1-5 VDC or 2-10 VDC; the analog current signal of 4-20 mA provides a 3-15 psi linear pneumatic output signal. A 1-5 VDC output feedback signal, proportional and linear to the 3-15 psi output signal, is provided. A gauge tap is also provided for pressure output indication. Standard 3.25″ Snap Track is supplied for mounting.

The XEC-3004 is the XEC-3001 module with a manual (H/O/A) override.

The discontinued XEC-3002 was the XEC-3001 module mounted in an enclosure. It is replaced by the XEC-3001 and an enclosure purchased elsewhere.

ApplicationThe XEC-3001/3004 E/I-P Transducer is used in HVAC systems to provide an accurate signal forpositioning damper and valve actuators based on branch line pressure.
