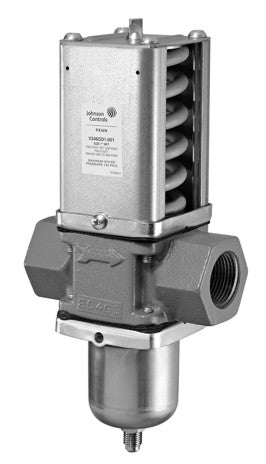

V246GC1-001C | WATER VALVE HP 3/4"INCH; HP REFRIG; 2-WAY WATER REG VLV; 3/4" NPT DA COMMERCIAL 200-400PSI | Johnson Controls
Overview
Details for V246GC1-001C
Description
The V246 Series Two-Way Pressure-Actuated WaterRegulating Valves for High-Pressure Refrigerants come in two types of control action: direct acting and reverse acting. V246 valves regulate water flow to control refrigerant head pressure in systems with water-cooled condensers. The V246 Series Valves are available in 3/8 in. through 2 in. sizes and have a maximum allowable water pressure of 150 psig (10.3 bar). Direct acting V246 valves have an adjustable opening point in a refrigerant pressure range of 200 to 400 psi (13.8 to 27.6 bar), and reverse acting valves have a range of 135 to 300 psi (9.3 to 20.7 bar). V246 valves may be used with standard non-corrosive refrigerants. Maritime models, which have nickel copper (Monel®) internal parts, are available for applications where the media may be corrosive to the internal parts. Refer to the V246 Series 2-Way Pressure-Actuated WaterRegulating Valves for High-Pressure Refrigerants Product Bulletin (LIT-12011514) for important product application information.
Features
- no close fitting or sliding parts in water passages
- accessible range spring
- take-apart construction
- pressure-balanced design
- corrosion-resistant material for internal parts
Repair information
If the V246 Series Two-Way Pressure-Actuated WaterRegulating Valve for High Pressure Refrigerants fails to operate within its specifications, refer to the V246 Series Two-Way Pressure-Actuated Water-Regulating Valves for High Pressure Refrigerants Product Bulletin (LIT-12011514) for a list of repair parts available
Specifications
| Item Number | V246GC1-001C |
| Brand | Johnson Controls |
