TS-13010 | Digital temperature switch | 110 VAC | 16 A | °F display. | Dwyer Instruments

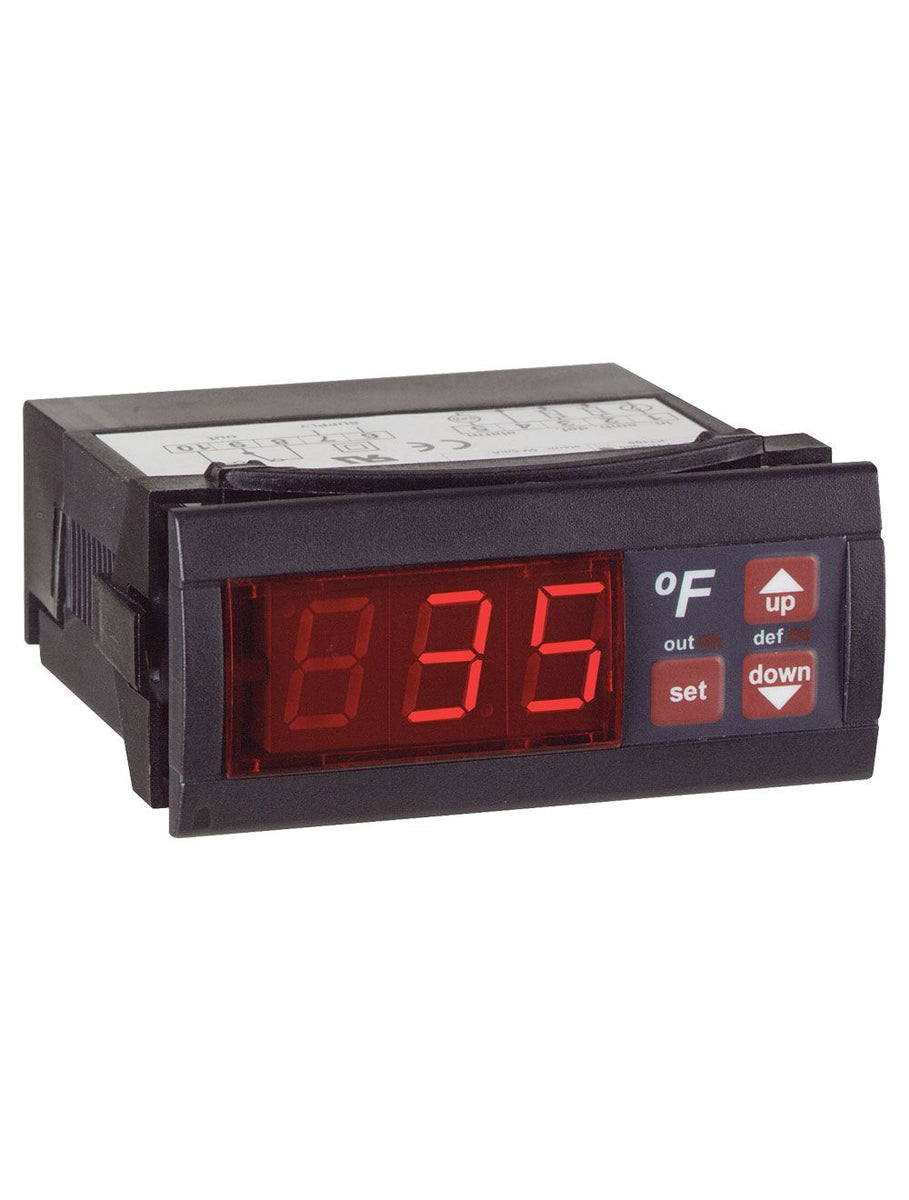

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to TS-13010

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments TS-13010 Documents

TS Series TS Catalog Page More Info

Overview

Details for TS-13010

TS-13010 Digital Temperature Switch by Dwyer InstrumentsDwyer Instrumentsâ€™ TS-13010 Digital Temperature Switch is a compact and versatile solution for controlling temperature-sensitive processes. With its wide temperature range of -58 to 302Â°F (-50 to 150Â°C) and generous 16A load rating, this switch can handle demanding applications in industrial and commercial settings. The digital display provides clear and precise temperature readings, allowing for accurate monitoring and adjustment. The TS-13010's rugged construction ensures durability and reliability even in harsh environments. Its compact design enables easy installation in space-constrained areas. Additional features include an adjustable deadband for hysteresis control and a variety of probe options to meet specific application needs. Trust Dwyer Instruments' TS-13010 Digital Temperature Switch for reliable and precise temperature control in various applications. Shop now at our HVAC supply store for the best prices and fast shipping!

SERIES TS DIGITAL TEMPERATURE SWITCH

3-Digit Display, Heating/Cooling Control, 8 or 16 Amp Relay

The Series TS Digital Temperature Switch is designed to regulate many heating and cooling applications. Easy programming via the tactile front keypad enables quick setup of the 12 parameters for simple, reliable operation. The user can define set point, heating/cooling regulation, hysteresis, cycle time, ambient probe adjustment and defrosting time. The unit features error or alarm messaging and password protection. View probe temperature on the bright red, 3-digit LED display. Select between temperature display in °F or °C, and 110 VAC, 230 VAC, or 12 VDC power supplies. The Series TS includes a thermistor with 5 ft (1.5 m) cable, fitting clips for panel mounting, gasket, rear terminal cover, and instruction manual.

Product Applications

Industrial chillers
Environmental chambers
Walk-ins and freezers
Heat sealers
Sterilizers
Beer and wine chillers
Mug frosters
Coolers
Display cases and cabinets
Warmers
Meat and produce storage
Floral preservation
Refrigerated transportation
Laboratories
Food service equipment
Ovens and dryers
Tobacco preservation
Hot melt glue stichers for case erectors
Cool rooms
Burn-in rooms and chambers
Cold water citrus packing

Specifications

Series: TS DIGITAL TEMPERATURE SWITCH
Category/Type: Temperature
Type: Switches
Series: TS DIGITAL TEMPERATURE SWITCH
Probe Range: -58 to 302°F (-50 to 150°C).
Input: 1.5-inch (4 cm) thermistor (1000Ω @ 25°C) with 5 ft (1.5 m) cable.
Output: 16A SPDT relay @ 250 VAC resistive.
Horsepower Rating (HP): 1 HP for 16A.
Control Type: ON/OFF.
Power Requirements: 110 VAC; 230 VAC or 12 VAC/VDC (depending on model). 4VA (230V).
Accuracy: ±1°C.
Display: 3-digit; red; 1/2" digits.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to 70°C).
Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE; ULc; UL.
