KMC Controls STE-6012-10 Temperature Sensor The STE-6012-10 from KMC Controls is a temperature sensor that features a large, easy-to-read LCD display. This sensor is ideal for use in industrial applications, where accurate and reliable temperature monitoring is essential. The STE-6012-10 has a wide temperature range of -58°F to +302°F (-50°C to +150°C) and is accurate to within ±1°C. It also has a variety of output options, including 4-20mA, 0-5V, and RS-485. This sensor is housed in a rugged, NEMA 4X enclosure that is designed to withstand harsh industrial environments. It also has a built-in backlight that allows for easy reading in low-light conditions. The STE-6012-10 is a versatile and reliable temperature sensor that is ideal for a wide range of industrial applications. Benefits * Large, easy-to-read LCD display * Wide temperature range (-58°F to +302°F) * Accurate to within ±1°C * Variety of output options (4-20mA, 0-5V, RS-485) * Rugged, NEMA 4X enclosure * Built-in backlight Applications * Industrial temperature monitoring * HVAC systems * Manufacturing processes * Food and beverage processing Shop at our HVAC supply store our HVAC supply store offers the best prices and fast shipping on the KMC Controls STE-6012-10 Temperature Sensor. Order yours today!

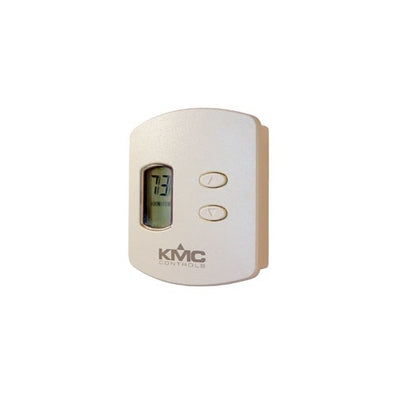

These compact, stylish, and economical room temperature sensors/transmitters are designed for use with KMC digital controllers. They incorporate a 10,000 ohm (@ 77° F) thermistor for precise, stable temperature sensing. The durable, low-profile, thermostat-style cover is visually appealing. These sensors may be surface mounted on a hollow wall or (using an HMO-6036 universal backplate) to a 2 x 4 in. electrical box.

STE-6012 model transmitters include an LCD display for the room temperature and setpoint. The temperature display can be toggled between Fahrenheit and Celsius scales. The setpoint is adjustable via the up and down arrow buttons on the front panel. If the system is in normal/override mode, pressing a button will raise or lower the setpoint. When either button is pushed, the display will toggle from room temperature to the setpoint. When the button is released, the number displayed is the new setpoint, and the display will return to room temperature after ten seconds. If the system is in setback/setup (for heating/cooling) mode, pressing either button selects override mode. (See Power Requirements in the Specifications section of the data sheet.)
