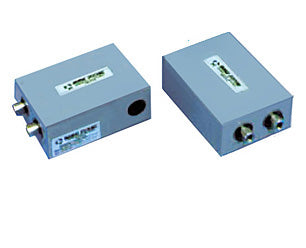

PR-282-1-4-A-1-2-B | Differential Pressure Sensor | 0 - 100 psid | 0-1VDC | 24VDC Powered | MAMAC Systems

0-100# 24vdc0-1vdc PresTrnsd by MAMAC Systems [PR-282-1-4-A-1-2-B] The MAMAC Systems 0-100# 24vdc0-1vdc PresTrnsd is a vital component for industrial automation systems. This pressure transducer provides precise measurement and conversion of pressure signals from 0 to 100 psi into an analog signal output of 0 to 1 volt. The transducer's durable construction ensures reliable operation in demanding industrial environments. Its rugged design withstands vibrations, shock, and extreme temperatures, making it suitable for applications in harsh conditions. The compact size and lightweight design allow for easy installation in space-constrained areas. Key Features: * Pressure range: 0 to 100 psi * Output signal: 0 to 1 volt * Accuracy: ±0.5% full-scale * Operating temperature: -40°C to +85°C * IP67-rated for protection against dust and moisture Benefits: * Precise and reliable pressure measurement * Ideal for harsh industrial environments * Compact and easy to install * Wide compatibility with various automation systems Applications: * Industrial automation systems * Process control * Hydraulics and pneumatics * Robotics * Test and measurement Shop now at our HVAC supply store for the best prices and fast shipping on the 0-100# 24vdc0-1vdc PresTrnsd by MAMAC Systems. Our extensive inventory and commitment to customer satisfaction ensure you get the right products for your industrial needs.

•  100% solid-state fused silicon pressure sensors
• Rugged, leakproof stainless steel monolithic pressure cavities with no welds, O-rings, seams, or bonds
• Wide 12-40 VDC/12-35 VAC unregulated supply voltage
• Three temperature-compensated humidity output versions: 4-20 mA 2-wire or 0-5 VDC/ 0-10 VDC
• NIST traceable calibration
• Rugged NEMA-1 (IP-30) enclosure
• Short circuit and reverse polarity protected • Conforms to EMC and RoHS standards

The PR-282 incorporates sophisticated integrated circuits and new fused silicon monolithic cavity pressure sensors to not only provide a high level, fully conditioned and temperature compensated output, but also to offer up to six (6) pressure ranges. The stainless steel monolithic pressure cavity not only provides media compatibility for most of the applications, but also offers a leakproof solution for today’s environmentally conscious customers. Three industry standard output versions are available: 4-20 mA 2-wire loop or 0-5 VDC/0-10 VDC. A wide 12-40 VDC or 12-35 VAC unregulated supply voltage and a broad 0°F−180°F compensated temperature range ensures compatibility to most of the applications. A rugged NEMA-1 (IP-30) enclosure, fully temperature compensated NIST traceable accuracy and a liberal five year warranty are some of the features which make the PR-282 the industry’s most reliable, rugged, and economical pressure sensor.
