LC1F150G7 | TeSys F Contactor, 3-Poles (3 NO), 250A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1F150G7

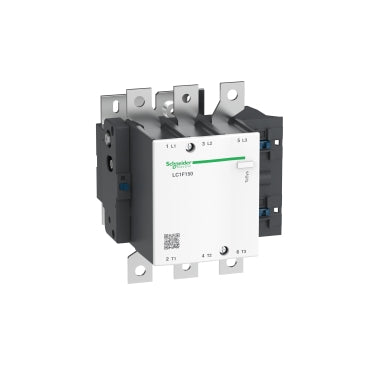

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1F150G7

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1F150G7 Documents

More Info

Overview

Details for LC1F150G7

Schneider Electric (Square D) LC1F150G7 3 Pole Contactor: Performance and Reliability for Demanding Electrical SystemsThe Schneider Electric (Square D) LC1F150G7 is a 3-pole contactor designed to handle demanding electrical applications. With a rated voltage of 600 volts and a current capacity of 150 Amps, it is ideal for controlling high-power loads in various industrial settings.Compact and Durable: Featuring a compact design, the LC1F150G7 is easy to integrate into control panels and switchgear. Its durable construction ensures reliable operation in harsh environments, making it a suitable choice for both indoor and outdoor applications.Versatile Performance: This versatile contactor offers multiple coil voltage options, allowing for compatibility with various control systems. Its 3-pole design provides simultaneous control of multiple circuits, simplifying system design and operation.Applications:The Schneider Electric (Square D) LC1F150G7 3-pole contactor is commonly used in industrial automation, power distribution, and motor control applications. It is ideal for controlling:Motors (AC and DC)Lighting systemsHeatersTransformersCapacitive loadsShop our HVAC supply store today! We offer competitive prices and fast shipping on all our products, ensuring you get the best value and efficient delivery. Upgrade your electrical system with the reliable performance of the Schneider Electric (Square D) LC1F150G7 3-pole contactor. TeSys F contactors have been designed for motors in normal or severe service conditions. They are commonly used in industry, infrastructure, building and renewable energy applications. TeSys F contactors are available in 11 contactor ratings for inductive motor applications up to 800 full-load amps and resistive loads up to 2100 amps. This 150A inductive 3 pole IEC contactor can be mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 65kA. When used with 600VAC Class J or CC fuses up to 200A, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 50/60 Hz coil. Contactor has one normally open auxiliary contact built-in as standard. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.69 inches tall, 6.44 inches wide and 6.73 inches deep. It weighs 7.56 lbs. Contactor is certified to UL, IEC, CCC, ABS, DNV, CB, BV, RINA, RMRoS and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys
Range of Product: TeSys F
Product or Component Type: Contactor
device short name: LC1F
contactor application: Motor control;Resistive load
utilisation category: AC-4;AC-3;AC-1
poles description: 3P
[Ue] rated operational voltage: <= 690 V AC 50/60 Hz;<= 460 V DC
[Uc] control circuit voltage: 120 V AC 40...400 Hz
[Ie] rated operational current: 250 A 104 °F (40 °C)) <= 440 V AC-1;150 A 131 °F (55 °C)) <= 440 V AC-3
[Uimp] rated impulse withstand voltage: 8 kV
[Ith] conventional free air thermal current: 250 A 104 °F (40 °C)
rated breaking capacity: 1200 A IEC 60947-4-1
[Icw] rated short-time withstand current: 1200 A 104 °F (40 °C) - 10 s;700 A 104 °F (40 °C) - 30 s;600 A 104 °F (40 °C) - 1 min;450 A 104 °F (40 °C) - 3 min;350 A 104 °F (40 °C) - 10 min
associated fuse rating: 160 A aM <= 440 V;250 A gG <= 440 V
average impedance: 0.35 mOhm - Ith 250 A 50 Hz
[Ui] rated insulation voltage: 1000 V IEC 60947-4-1;1500 V VDE 0110 group C
power dissipation per pole: 22 W AC-1;8 W AC-3
overvoltage category: III
power pole contact composition: 3 NO
motor power kW: 75 kW 380...400 V AC 50/60 Hz AC-3);80 kW 415 V AC 50/60 Hz AC-3);80 kW 440 V AC 50/60 Hz AC-3);90 kW 500 V AC 50/60 Hz AC-3);100 kW 660...690 V AC 50/60 Hz AC-3);40 kW 220...230 V AC 50/60 Hz AC-3);22 kW 400 V AC 50/60 Hz AC-4)
control circuit voltage limits: Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C));Drop-out 0.2...0.55 Uc 40...400 Hz 131 °F (55 °C))
mechanical durability: 10 Mcycles
inrush power in VA: 770 VA;40...400 Hz 0.9 68 °F (20 °C))
hold-in power consumption in VA: 8.1 VA;40...400 Hz 0.9 68 °F (20 °C))
maximum operating rate: 2400 cyc/h 131 °F (55 °C)
operating time: 35 ms closing at Uc);130 ms opening at Uc)
connections - terminals: Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)flexible with cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²)flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.01 in² (1…4 mm²)solid without cable end;Control circuit screw clamp terminals 2 0.00…0.01 in² (1…4 mm²)solid without cable end;Power circuit bar 2 25 x 3 mm;Power circuit lugs-ring terminals 1 0.19 in² (120 mm²);Power circuit connector 1 0.19 in² (120 mm²);Power circuit bolted connection
tightening torque: Control circuit 10.62 lbf.in (1.2 N.m);Power circuit 159.31 lbf.in (18 N.m)
Mounting Support: Plate
heat dissipation: 5.9…7.2 W
Standards: JIS C8201-4-1;IEC 60947-1;EN 60947-4-1;IEC 60947-4-1;EN 60947-1
Product Certifications: CB;UL;RMRoS;BV;RINA;LROS (Lloyds register of shipping);DNV;CCC;ABS;UKCA
compatibility code: LC1F
control circuit type: AC 40...400 Hz
IP degree of protection: IP2x front face with shrouds IEC 60529;IP2x front face with shrouds VDE 0106
protective treatment: TH
Ambient air temperature for operation: -40…140 °F (-40…60 °C)
Ambient Air Temperature for Storage: -76…176 °F (-60…80 °C)
permissible ambient air temperature around the device: 140…158 °F (60…70 °C) at Uc
Height: 6.69 in (170 mm)
Width: 6.44 in (163.5 mm)
Depth: 6.73 in (171 mm)
operating altitude: 9842.52 ft (3000 m) without derating
Net Weight: 7.56 lb(US) (3.43 kg)
Category: 22336-CTR;F-LINE;AC;OPEN;NONREV
Discount Schedule: I12
GTIN: 3389110350968
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 8.27 in (21.0 cm)
Package 1 Width: 7.87 in (20.0 cm)
Package 1 Length: 9.45 in (24.0 cm)
Package 1 Weight: 9.24 lb(US) (4.19 kg)
Warranty: 18 months
