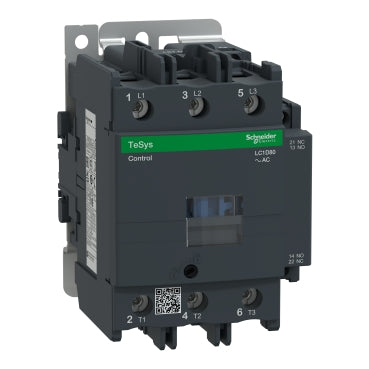

LC1D80G6 | TeSys D Contactor, 3-Poles (3 NO), 80A, 120V AC Coil, Non-Reversing | Schneider Electric (Square D)

Schneider Electric (Square D) | LC1D80G6

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LC1D80G6

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) LC1D80G6 Documents

More Info

Overview

Details for LC1D80G6

Schneider Electric (Square D) LC1D80G6 Contactor: Engineered for Industrial ControlThe Schneider Electric (Square D) LC1D80G6 contactor is meticulously designed to meet the demanding requirements of industrial control applications. This 3-pole contactor boasts a robust construction, enabling dependable operation in harsh environments.Rated for 80A at 120Vac 60Hz, the LC1D80G6 contactor reliably handles high-current loads. Its non-reversing function ensures unidirectional power flow, enhancing safety and preventing equipment damage.Installation is simplified with the contactor's easy-to-wire design. Its compact form factor allows for efficient use of panel space, while the durable materials enhance longevity.The LC1D80G6 contactor is a preferred choice for industrial applications where reliable and efficient control is essential. Its robust build, high current-carrying capacity, and non-reversing operation make it an ideal solution for a wide range of demanding control tasks.Our HVAC supply store offers the Schneider Electric (Square D) LC1D80G6 contactor at competitive prices, ensuring you have the right equipment for your industrial needs. Contact us today for expert assistance and fast shipping! TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 80A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 25HP at 200 to 208VAC, 30HP at 240VAC, 60HP at 480VAC and 60HP at 600VAC three phase. Contactor is also rated for 7.5HP at 115VAC and 15HP at 240VAC single phase. When used with a 480VAC up to 150A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 175A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 120 VAC 60 Hz coil. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 5.00 inches tall, 3.35 inches wide and 5.12 inches deep. It weighs 3.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

Specifications

range: TeSys
Range of Product: TeSys D
Product or Component Type: Contactor
device short name: LC1D
contactor application: Motor control;Resistive load
utilisation category: AC-1;AC-4;AC-3;AC-3e
poles description: 3P
[Ue] rated operational voltage: Power circuit <= 300 V DC 25...400 Hz;Power circuit <= 690 V AC
[Ie] rated operational current: 125 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;80 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;80 A 140 °F (60 °C)) <= 440 V AC-3e power circuit
[Uc] control circuit voltage: 120 V AC 60 Hz
motor power kW: 22 kW 220...230 V AC 50/60 Hz AC-3);37 kW 380...400 V AC 50/60 Hz AC-3);45 kW 415...440 V AC 50/60 Hz AC-3);55 kW 500 V AC 50/60 Hz AC-3);45 kW 660...690 V AC 50/60 Hz AC-3);45 kW 1000 V AC 50/60 Hz AC-3);15 kW 400 V AC 50/60 Hz AC-4)
Maximum Horse Power Rating: 7.5 hp 120 V at AC 50/60 Hz for 1 phase;15 hp 230/240 V at AC 50/60 Hz for 1 phase;30 hp 200/208 V at AC 50/60 Hz for 3 phase;30 hp 230/240 V at AC 50/60 Hz for 3 phase;60 hp 460/480 V at AC 50/60 Hz for 3 phase;60 hp 575/600 V at AC 50/60 Hz for 3 phase
compatibility code: LC1D
pole contact composition: 3 NO
contact compatibility: M12
protective cover: With
[Ith] conventional free air thermal current: 10 A 140 °F (60 °C) signalling circuit;125 A 140 °F (60 °C) power circuit
Irms rated making capacity: 140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1100 A 440 V power circuit IEC 60947
rated breaking capacity: 1100 A 440 V power circuit IEC 60947
[Icw] rated short-time withstand current: 640 A 104 °F (40 °C) - 10 s power circuit;990 A 104 °F (40 °C) - 1 s power circuit;135 A 104 °F (40 °C) - 10 min power circuit;320 A 104 °F (40 °C) - 1 min power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit
associated fuse rating: 10 A gG signalling circuit IEC 60947-5-1;200 A gG <= 690 V type 1 power circuit;160 A gG <= 690 V type 2 power circuit
average impedance: 0.8 mOhm - Ith 125 A 50 Hz power circuit
power dissipation per pole: 5.1 W AC-3;12.5 W AC-1;5.1 W AC-3e
[Ui] rated insulation voltage: Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL
overvoltage category: III
pollution degree: 3
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947
safety reliability level: B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
mechanical durability: 10 Mcycles
electrical durability: 0.8 Mcycles 125 A AC-1 <= 440 V;1.5 Mcycles 80 A AC-3 <= 440 V;1.5 Mcycles 80 A AC-3e <= 440 V
control circuit type: AC 60 Hz
coil technology: Without built-in suppressor module
control circuit voltage limits: 0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz;0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz;1...1.1 Uc 131…158 °F (55…70 °C) operational AC 60 Hz
inrush power in VA: 220 VA 60 Hz 0.75 68 °F (20 °C))
hold-in power consumption in VA: 22 VA 60 Hz 0.3 68 °F (20 °C))
maximum operating rate: 3600 cyc/h 140 °F (60 °C)
tightening torque: Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector flat Ø 6 to Ø 8 mm;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2
auxiliary contact composition: 1 NO + 1 NC
auxiliary contacts type: Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1
signalling circuit frequency: 25...400 Hz
minimum switching voltage: 17 V signalling circuit
minimum switching current: 5 mA signalling circuit
insulation resistance: > 10 MOhm signalling circuit
non-overlap time: 1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact
Mounting Support: Rail;Plate
standards: CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508
Product Certifications: BV;GL;RINA;GOST;LROS (Lloyds register of shipping);UL;CSA;DNV;CCC
IP degree of protection: IP20 front face IEC 60529
climatic withstand: IACS E10
operating altitude: 0...9842.52 ft (0...3000 m)
fire resistance: 1562 °F (850 °C) IEC 60695-2-1
flame retardance: V1 conforming to UL 94
Height: 5.00 in (127 mm)
Width: 3.35 in (85 mm)
Depth: 5.12 in (130 mm)
Net Weight: 3.51 lb(US) (1.59 kg)
Category: 22359-CTR;TESYS D;OPEN;80-150A AC&DC
Discount Schedule: I12
GTIN: 3389110440829
Returnability: Yes
Country of origin: CZ
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.31 in (13.5 cm)
Package 1 Width: 4.13 in (10.5 cm)
Package 1 Length: 5.31 in (13.5 cm)
Package 1 Weight: 3.40 lb(US) (1.54 kg)
Warranty: 18 months
