LC1D65BD | TeSys D Contactor, 3-Poles (3 NO), 65A, 24V DC Coil, Non-Reversing | Schneider Electric (Square D)

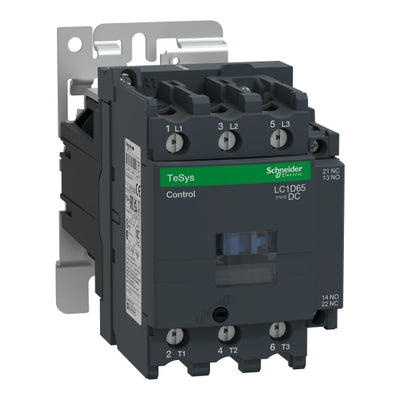

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LC1D65BD
Overview
Details for LC1D65BD
Schneider Electric (Square D) 3P 65A 24VDC Contactor (LC1D65BD)
The Schneider Electric (Square D) 3P 65A 24VDC Contactor (LC1D65BD) is a high-quality contactor designed for use in industrial applications. This contactor is manufactured by Schneider Electric, a leading name in electrical equipment.
This contactor features a 3-pole design with a current rating of 65 Amps and a voltage rating of 24VDC. The contactor is made from durable materials and is designed to withstand the harsh conditions found in industrial environments. It is suitable for use in a wide range of applications, including motor control, lighting control, and heating and cooling control.
Here are some of the key features and benefits of the Schneider Electric (Square D) 3P 65A 24VDC Contactor (LC1D65BD):
* 3-pole design
* Current rating of 65 Amps
* Voltage rating of 24VDC
* Durable construction
* Long service life
* Easy to install and maintain
Our HVAC supply store has the lowest price on the Schneider Electric (Square D) 3P 65A 24VDC Contactor (LC1D65BD) in stock and ready to ship. Order yours today and get free shipping on orders over $50.
Specifications
- Range
- TeSys
- Range of product
- TeSys Deca
- Product or component type
- Contactor
- device short name
- LC1D
- contactor application
- Motor control
Motor control - Utilisation category
- AC-3
AC-2
AC-1
AC-3e
AC-1 - Poles description
- 3P
- [Ue] rated operational voltage
- Power circuit: <= 690 V AC 25...400 Hz
- [Ie] rated operational current
- 65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit - [Uc] control circuit voltage
- 24 V DC
- Motor power kW
- 30 kW at 380...400 V AC 50 Hz
37 kW at 500 V AC 50 Hz
37 kW at 660...690 V AC 50 Hz
18.5 kW at 220...230 V AC 50 Hz
30 kW at 415 V AC 50 Hz
37 kW at 1000 V AC 50 Hz (AC-3)
11 kW at 400 V AC 50 Hz (AC-4)
30 kW at 440 V AC 50 Hz (AC-3) - Motor power hp
- 10 hp at 230/240 V AC 60 Hz for 1 phase motors
20 hp at 200/208 V AC 60 Hz for 3 phases motors
20 hp at 230/240 V AC 60 Hz for 3 phases motors
40 hp at 460/480 V AC 60 Hz for 3 phases motors
50 hp at 575/600 V AC 60 Hz for 3 phases motors
5 hp at 115 V AC 60 Hz for 1 phase motors - Compatibility code
- LC1D
- Pole contact composition
- 3 NO
- Protective cover
- With
- [Ith] conventional free air thermal current
- 80 A (at 60 °C) for power circuit
10 A (at 60 °C) for control circuit - Irms rated making capacity
- 1000 A at 440 V DC for power circuit conforming to IEC 60947
1000 A at 440 V for power circuit conforming to IEC 60947
250 A DC for control circuit conforming to IEC 60947-5-1 - Rated breaking capacity
- 1000 A at 440 V for power circuit conforming to IEC 60947
- Associated fuse rating
- 125 A gG at <= 690 V coordination type 2 for power circuit
160 A gG at <= 690 V coordination type 1 for power circuit conforming to IEC 60947-5-1
125 A gG at <= 690 V coordination type 1 for power circuit
10 A gG for control circuit conforming to IEC 60947-5-1 - Power dissipation per pole
- 6.4 W AC-1
4.2 W AC-3e
4.2 W AC-3 - [Ui] rated insulation voltage
- Control circuit: 600 V UL certified
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified conforming to IEC 60947-1
Control circuit: 690 V conforming to IEC 60947-1
Power circuit: 690 V conforming to IEC 60947-1
Power circuit: 1000 V CSA certified conforming to IEC 60947-4-1
Control circuit: 600 V CSA certified - Overvoltage category
- III
- [Uimp] rated impulse withstand voltage
- 8 kV conforming to IEC 60947
- Safety reliability level
- B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 - Mechanical durability
- 10000000 cycles
- Control circuit type
- DC wide range
- Coil technology
- Built-in bidirectional peak limiting diode suppressor
- Control circuit voltage limits
- 0.75...1.25 Uc (-40…60 °C):operational DC
1...1.25 Uc (60…70 °C):operational DC
0.1...0.3 Uc (-40…70 °C):drop-out DC - Inrush power in W
- 19 W (at 20 °C)
- Hold-in power consumption in W
- 7.4 W at 20 °C
- Rated operational power in W
- 48 W at 24 V DC-13 - electrical durability: 3000000 cycles - for control circuit
96 W at 24 V DC-13 - electrical durability: 1000000 cycles - for control circuit
14 W at 24 V DC-13 - electrical durability: 10000000 cycles - for control circuit - Operating time
- 50 ms closing
20 ms opening - Time constant
- 34 ms
- Maximum operating rate
- 3600 cyc/h 60 °C
- Connections - terminals
- Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: rigid
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: rigid without cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 2 2.5…16 mm² - cable stiffness: flexible without cable end
Power circuit: screw terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end
Power circuit: screw terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: rigid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: rigid - Tightening torque
- Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver Philips No 2
Power circuit: 5 N.m - on screw terminal - with screwdriver flat Ø 6 to Ø 8 mm
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver pozidriv No 2
Control circuit: 1.7 N.m - on screw clamp terminal - with screwdriver flat Ø 6 mm - auxiliary contact composition
- 1 NO + 1 NC
- Auxiliary contacts type
- type mirror contact 1 NC conforming to IEC 60947-4-1
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 - Minimum switching voltage
- 17 V for control circuit
- Minimum switching current
- 5 mA for control circuit
- Insulation resistance
- > 10 MOhm for control circuit
- Non-overlap time
- 1.5 ms on energisation between NC and NO contacts
1.5 ms on de-energisation between NC and NO contacts - Mounting support
- Plate
Rail - Standards
- IEC 60947-5-1
IEC 60947-4-1
EN 60947-4-1
UL 508
EN 60947-5-1 - product certifications
- GOST
LROS (Lloyds register of shipping)
DNV
CCC
CSA
GL
UL
RINA
UKCA
RINA - IP degree of protection
- IP2X conforming to VDE 0106
IP2X conforming to IEC 60529 - Climatic withstand
- conforming to IACS E10 exposure to damp heat
- Operating altitude
- 0...3000 m
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Flame retardance
- V1 conforming to UL 94
- Mechanical robustness
- Shocks contactor closed (15 Gn for 11 ms)
Vibrations contactor opened (2 Gn, 5...300 Hz)
Vibrations contactor closed (4 Gn, 5...300 Hz)
Shocks contactor opened (10 Gn for 11 ms) - Height
- 127 mm
- Width
- 85 mm
- Depth
- 176 mm
- Net weight
- 2.185 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.0 cm
- Package 1 Width
- 21.6 cm
- Package 1 Length
- 16.0 cm
- Package 1 Weight
- 2.268 kg
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 2
- Package 2 Height
- 15 cm
- Package 2 Width
- 30 cm
- Package 2 Length
- 40 cm
- Package 2 Weight
- 4.824 kg
- Warranty
- 18 months
