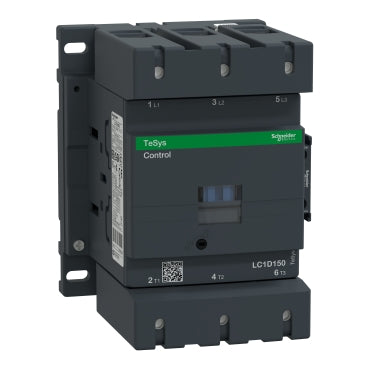

LC1D150BD | TeSys D Contactor, 3-Poles (3 NO), 150A, 24V DC Coil, Non-Reversing | Schneider Electric (Square D)

Protect and Control with Schneider Electric (Square D) Contactor: LC1D150BDThe LC1D150BD contactor from Schneider Electric (Square D) is a reliable and high-performing electrical device designed to control power in industrial applications. This 3P 3N/O contactor features 3 poles and 3 normally open contacts, enabling the control of a wide range of electrical circuits.Built to withstand demanding industrial environments, the LC1D150BD contactor boasts a robust construction with high-quality materials. Its compact size makes it easy to integrate into various electrical systems, while its simple installation process ensures quick setup times.With its exceptional performance and durability, the LC1D150BD contactor is an ideal choice for industrial engineers and maintenance professionals seeking reliable and efficient power control solutions. At our HVAC supply store, we offer the best prices and fast shipping on the LC1D150BD contactor, ensuring you get the best value for your investment. Contact us today to place your order! TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 150A inductive 3 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactors have both Horsepower and Kw motor rating for international acceptance. Contactor is rated for 40HP at 200 to 208VAC, 50HP at 240VAC, 100HP at 480VAC and 125HP at 600VAC three phase. When used with a 480VAC up to 250A circuit breaker, this contactor can have a SCCR up to 100kA. When used with up to a 600VAC 300A Class J or CC fuse, this contactor can have a SCCR up to 100kA. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Screw clamp terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 6.22 inches tall, 4.72 inches wide and 5.35 inches deep. It weighs 5.51 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.

range

TeSys

Range of Product

TeSys D

Product or Component Type

Contactor

device short name

LC1D

contactor application

Resistive load;Motor control

utilisation category

AC-3;AC-4;AC-1;AC-3e

poles description

3P

[Ue] rated operational voltage

Power circuit <= 1000 V AC 25...400 Hz;Power circuit <= 300 V DC

[Ie] rated operational current

200 A 140 °F (60 °C)) <= 440 V AC AC-1 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3 power circuit;150 A 140 °F (60 °C)) <= 440 V AC AC-3e power circuit

[Uc] control circuit voltage

24 V DC

motor power kW

40 kW 220...230 V AC 50/60 Hz AC-3);75 kW 380...400 V AC 50/60 Hz AC-3);80 kW 415...440 V AC 50/60 Hz AC-3);90 kW 500 V AC 50/60 Hz AC-3);100 kW 660...690 V AC 50/60 Hz AC-3);75 kW 1000 V AC 50/60 Hz AC-3);22 kW 400 V AC 50/60 Hz AC-4);40 kW 220...230 V AC 50/60 Hz AC-3e);75 kW 380...400 V AC 50/60 Hz AC-3e);80 kW 415...440 V AC 50/60 Hz AC-3e);90 kW 500 V AC 50/60 Hz AC-3e);100 kW 660...690 V AC 50/60 Hz AC-3e);75 kW 1000 V AC 50/60 Hz AC-3e)

Maximum Horse Power Rating

40 hp 200/208 V at AC 50/60 Hz for 3 phase;50 hp 230/240 V at AC 50/60 Hz for 3 phase;100 hp 460/480 V at AC 50/60 Hz for 3 phase;125 hp 575/600 V at AC 50/60 Hz for 3 phase

compatibility code

LC1D

pole contact composition

3 NO

contact compatibility

M10

protective cover

With

[Ith] conventional free air thermal current

200 A 140 °F (60 °C) power circuit

Irms rated making capacity

140 A AC signalling circuit IEC 60947-5-1;250 A DC signalling circuit IEC 60947-5-1;1660 A 440 V power circuit IEC 60947

rated breaking capacity

1400 A 440 V power circuit IEC 60947

[Icw] rated short-time withstand current

250 A 104 °F (40 °C) - 10 min power circuit;580 A 104 °F (40 °C) - 1 min power circuit;1200 A 104 °F (40 °C) - 10 s power circuit;1400 A 104 °F (40 °C) - 1 s power circuit;100 A - 1 s signalling circuit;120 A - 500 ms signalling circuit;140 A - 100 ms signalling circuit

associated fuse rating

10 A gG signalling circuit IEC 60947-5-1;315 A gG <= 690 V type 1 power circuit;250 A gG <= 690 V type 2 power circuit

average impedance

0.6 mOhm - Ith 200 A 50 Hz power circuit

power dissipation per pole

24 W AC-1;13.5 W AC-3;13.5 W AC-3e

[Ui] rated insulation voltage

Power circuit 600 V CSA;Power circuit 600 V UL;Power circuit 1000 V IEC 60947-4-1;Signalling circuit 690 V IEC 60947-1;Signalling circuit 600 V CSA;Signalling circuit 600 V UL

overvoltage category

III

pollution degree

3

[Uimp] rated impulse withstand voltage

8 kV IEC 60947

safety reliability level

B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1;B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1

mechanical durability

8 Mcycles

electrical durability

0.85 Mcycles 150 A AC-3 <= 440 V;1 Mcycles 200 A AC-1 <= 440 V;0.85 Mcycles 150 A AC-3e <= 440 V

control circuit type

DC standard

coil technology

With integral suppression device

control circuit voltage limits

0.75...1.2 Uc -40…131 °F (-40…55 °C) operational DC;0.15...0.4 Uc -40…158 °F (-40…70 °C) drop-out DC;1...1.2 Uc 131…158 °F (55…70 °C) operational DC

inrush power in W

270…365 W 68 °F (20 °C))

hold-in power consumption in W

2.4…5.1 W 68 °F (20 °C)

operating time

20...35 ms closing;40...75 ms opening

time constant

25 ms

maximum operating rate

1200 cyc/h 140 °F (60 °C)

connections - terminals

Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible with cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) flexible without cable end;Control circuit screw clamp terminals 1 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Control circuit screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) solid without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible without cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) flexible with cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) flexible with cable end;Power circuit connector 1 0.02…0.19 in² (10…120 mm²) solid without cable end;Power circuit connector 2 0.02…0.08 in² (10…50 mm²) solid without cable end

tightening torque

Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals flat Ø 6 mm;Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals Philips No 2;Power circuit 106.21 lbf.in (12 N.m) connector hexagonal 0.16 in (4 mm);Control circuit 10.62 lbf.in (1.2 N.m) screw clamp terminals pozidriv No 2

auxiliary contact composition

1 NO + 1 NC

auxiliary contacts type

Mechanically linked 1 NO + 1 NC IEC 60947-5-1;Mirror contact 1 NC IEC 60947-4-1

signalling circuit frequency

25...400 Hz

minimum switching voltage

17 V signalling circuit

minimum switching current

5 mA signalling circuit

insulation resistance

> 10 MOhm signalling circuit

non-overlap time

1.5 ms on de-energisation between NC and NO contact;1.5 ms on energisation between NC and NO contact

Mounting Support

Rail;Plate

standards

CSA C22.2 No 14;EN 60947-4-1;EN 60947-5-1;IEC 60947-4-1;IEC 60947-5-1;UL 508

Product Certifications

UL;BV;GL;GOST;CSA;CCC;LROS (Lloyds register of shipping);RINA;DNV;UKCA;CE

IP degree of protection

IP20 front face IEC 60529

protective treatment

THIEC 60068-2-30

climatic withstand

IACS E10 exposure to damp heat

permissible ambient air temperature around the device

-40…140 °F (-40…60 °C);140…158 °F (60…70 °C) with derating

operating altitude

0...9842.52 ft (0...3000 m)

fire resistance

1562 °F (850 °C) IEC 60695-2-1

flame retardance

V1 conforming to UL 94

mechanical robustness

Vibrations contactor open 2 Gn;5...300 Hz);Vibrations contactor closed 4 Gn;5...300 Hz);Shocks contactor closed 15 Gn for 11 ms);Shocks contactor open 6 Gn for
