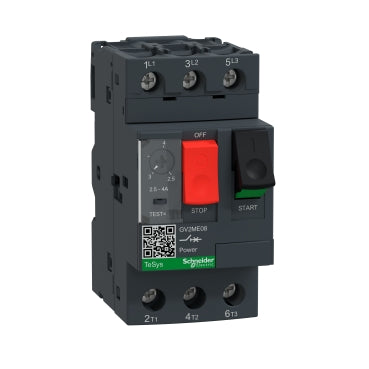

GV2ME08 | TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 2.5 to 4 A, screw clamp | Schneider Electric (Square D)

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME08

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) GV2ME08 Documents

More Info

Overview

Details for GV2ME08

GV2ME08 Motor Overload Control: Reliable Protection for Your Electrical Systems The GV2ME08 Motor Overload Control from Schneider Electric (Square D) offers reliable protection for your electrical systems from damage due to overloads. This compact and rugged device effectively limits current flow to within safe operating parameters, safeguarding your motors and other critical components. Key Features and Benefits: * Overload protection range: 2.9-4 amps * Ensures protection against damaging current overloads * Compact design: Saves valuable panel space * Easy installation: Simplifies the protection process * Durable construction: Withstands harsh industrial environments Applications: The GV2ME08 Motor Overload Control is ideal for a wide range of industrial applications, including: * Industrial machinery * Pumps * Conveyors * Compressor motors Additional Specifications: * Type: Thermal-magnetic overload relay * Terminals: Screw terminals * Mounting: Panel mountable Protect your critical electrical systems with the trusted GV2ME08 Motor Overload Control from Schneider Electric (Square D). Our top-quality products, expert support, and fast shipping ensure the smooth operation of your industrial processes. Shop our HVAC supply store Today! At our HVAC supply store, we understand the importance of reliable industrial components. That's why we offer only the best products at competitive prices, backed by our commitment to exceptional customer service. Contact us today for more information or place your order online and experience the our HVAC supply store difference! The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 2.5 ampere to 4 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 1.1 kW 400/415 V AC 50/60 Hz;1.5 kW 400/415 V AC 50/60 Hz;1.5 kW 500 V AC 50/60 Hz;3 kW 690 V AC 50/60 Hz;2.2 kW 500 V AC 50/60 Hz;2.2 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;100 kA Icu 440 V AC 50/60 Hz IEC 60947-2;100 kA Icu 500 V AC 50/60 Hz IEC 60947-2;3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 500 V AC 50/60 Hz IEC 60947-2;100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2;75 % 690 V AC 50/60 Hz IEC 60947-2
Control Type: Push-button
Line Rated Current: 4 A
magnetic tripping current: 51 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 4 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1 § 7-1-6
Width: 1.77 in (45 mm)
Height: 3.50 in (89 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.57 lb(US) (0.26 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343090
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.89 in (4.8 cm)
Package 1 Width: 3.35 in (8.5 cm)
Package 1 Length: 3.66 in (9.3 cm)
Package 1 Weight: 8.85 oz (251.0 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.0 cm)
Package 2 Width: 11.81 in (30.0 cm)
Package 2 Length: 15.75 in (40.0 cm)
Package 2 Weight: 13.95 lb(US) (6.327 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75.0 cm)
Package 3 Width: 23.62 in (60.0 cm)
Package 3 Length: 31.50 in (80.0 cm)
Package 3 Weight: 240.82 lb(US) (109.232 kg)
Warranty: 18 months
