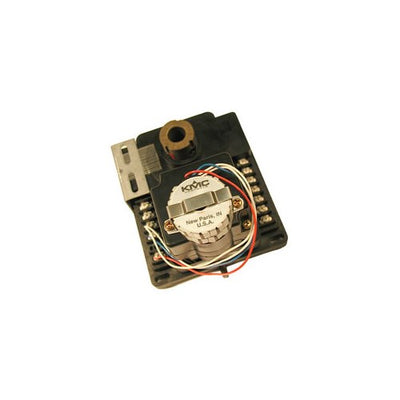

CEP-4015 | Controller: VAV, 45 in-lbs, 100 deg, CW Close, No Sensor | KMC Controls

KMC Controls AnalogVAVctrlCW/Close100'Rotat KMC Controls' AnalogVAVctrlCW/Close100'Rotat is an analog voltage actuator designed for controlling airflow in variable air volume (VAV) systems. This actuator is compatible with close-coupled VAV boxes and provides precise control over airflow, ensuring optimal air distribution and energy efficiency. Key Features and Benefits: Accurate Control: Analog voltage input allows for precise adjustment of airflow based on system demand. Compact Design: Fits easily into tight spaces, making it ideal for retrofit and new construction applications. Durable Construction: Robust construction with high-quality materials for long-term reliability and performance. Easy Installation: Designed for simple and quick installation, saving on labor costs. Applications: Suitable for commercial and industrial buildings, including offices, schools, and hospitals. Technical Specifications: Voltage: Analog 0-10V Torque: 100 lb-in Rotation Angle: 90 degrees Shaft Diameter: 1/2 inch Operating Temperature: -40°C to 70°C Enclosure: NEMA 1 Our HVAC supply store offers the best prices and fast shipping on KMC Controls' AnalogVAVctrlCW/Close100'Rotat. Trust us for your industrial parts and equipment needs.

The analog electronic CEP-4000 series pressure-independent controller-actuators are designed primarily for use on variable air volume terminal units. Cooling and heating air flow is sensed by a temperature-compensated hot-wire anemometer. Velocity sensing is unaffected by changes in the duct air temperature.

The CEP-4000 series offers full-range flow control of VAV terminal units when used with the CTE-1000/1100/5000 series as well as the CTE-5202 room thermostats. Air-velocity flow control limits are set at the room thermostat or remotely with the REE-1012 remote-limits accessory module.

The actuator section provides a magnetic clutch that allows the actuator to be stalled at either end of stroke, eliminating the requirement for mechanical stops or end switches. The controller-actuator is available with 100° or 60° built-in stops.

The default rotation direction can easily be reversed by swapping the red and blue motor wires.

When replacing an older model, the CEP-4995 (100° rotation, CW to close, no sensor) is a “universal replacement” for most applications and will replace MOST CEP-1000/3000/4000 series controllers. (When replacing a CEP-1000 or CEP-3000 series controller, the REE-1000 series relay may also need to be replaced with the equivalent REE-4000 series module—see the CEP-4000 Applications Guide for more details.)

NOTE: CEP-4xxxC models with silicon conformal coatings have been discontinued.

NOTE: See also the CSP-4702.
