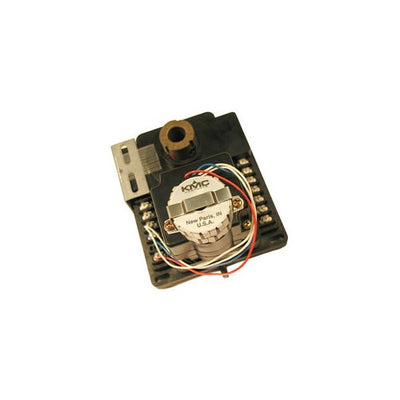

CEP-4012 | Controller: VAV, 45 in-lbs, 100 deg, CW Close, SSE-1002 | KMC Controls (OBSOLETE)

DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS VAV Controller: CEP-4012 by KMC Controls The CEP-4012 VAV Controller from KMC Controls is an advanced HVAC control solution designed for variable air volume systems. Featuring a user-friendly interface and extensive functionality, this controller optimizes airflow management, providing precise temperature control and energy efficiency. Key Features: * Compatible with SSE-1002 Coil Sensor for accurate temperature sensing * CW (Cooling Water) operation mode for cooling applications * Modulating 0-10VDC output for precise valve control * Status LED indicators for clear operational feedback * Compact size for easy mounting in various locations Benefits: * Improved comfort and occupant satisfaction through precise temperature control * Reduced energy consumption by optimizing airflow and preventing overcooling * Enhanced system efficiency and reduced maintenance costs * Quick installation and commissioning with user-friendly interface Applications: The KMC Controls CEP-4012 VAV Controller is ideal for various HVAC applications, including: * Office buildings * Educational facilities * Commercial spaces * Healthcare facilities * Industrial environments Maximize your HVAC system's efficiency and comfort with the KMC Controls CEP-4012 VAV Controller. Order now at our HVAC supply store for the best prices and fast shipping!

The analog electronic CEP-4000 series pressure-independent controller-actuators are designed primarily for use on variable air volume terminal units. Cooling and heating air flow is sensed by a temperature-compensated hot-wire anemometer. Velocity sensing is unaffected by changes in the duct air temperature.

The CEP-4000 series offers full-range flow control of VAV terminal units when used with the CTE-1000/1100/5000 series as well as the CTE-5202 room thermostats. Air-velocity flow control limits are set at the room thermostat or remotely with the REE-1012 remote-limits accessory module.

The actuator section provides a magnetic clutch that allows the actuator to be stalled at either end of stroke, eliminating the requirement for mechanical stops or end switches. The controller-actuator is available with 100° or 60° built-in stops.

The default rotation direction can easily be reversed by swapping the red and blue motor wires.

When replacing an older model, the CEP-4995 (100° rotation, CW to close, no sensor) is a “universal replacement” for most applications and will replace MOST CEP-1000/3000/4000 series controllers. (When replacing a CEP-1000 or CEP-3000 series controller, the REE-1000 series relay may also need to be replaced with the equivalent REE-4000 series module—see the CEP-4000 Applications Guide for more details.)

NOTE: CEP-4xxxC models with silicon conformal coatings have been discontinued.

NOTE: See also the CSP-4702.
