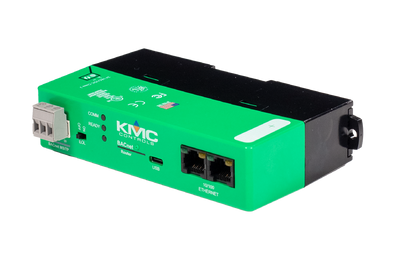

BAC-5051AE | Router: BACnet, IP/Dual Enet/Single MSTP | KMC Controls

Router Bacnet IP/Ethernet [SKU: BAC-5051AE] The KMC Controls BAC-5051AE Router Bacnet IP/Ethernet is a reliable and advanced networking solution designed for industrial automation and building management systems. This powerful router enables seamless communication between BACnet devices, such as controllers, sensors, and actuators, over IP/Ethernet networks. Key Features: * BACnet/IP and BACnet MS/TP support * Dual Ethernet ports for network redundancy and flexibility * Routing and bridging capabilities for extended network reach * Supports BACnet objects and services for comprehensive device management * Compact and DIN-rail mountable design for easy installation in industrial enclosures Benefits: * Enhanced data transfer speeds and network efficiency * Improved system reliability and fault tolerance * Simplified device integration and interoperability * Remote monitoring, control, and configuration of BACnet devices * Reduced downtime and increased system uptime Applications: The KMC Controls BAC-5051AE Router Bacnet IP/Ethernet is ideally suited for industrial automation and building management applications, including: * HVAC control systems * Lighting and energy management systems * Building security and access control systems * Manufacturing and process control systems Shop now at our HVAC supply store for the best prices and fast shipping on this essential networking solution for your industrial automation needs!

The KMC Controls BAC-5051AE is a multi-port BACnet router. It is powerful enough for heavy network traffic and small enough to use as a control technician’s service tool.

Features include:

Routing Install the BAC-5051AE for BACnet IP, Ethernet, and MS/TP routing. IP routing is fully compliant with BACnet Standard 134-2012, Annex J. Dual IP ports can be set up for normal BACnet IP network routing, BACnet broadcast management device (BBMD) with network and port address translation, foreign device registration (BBMD), or PAD (packet assembling/disassembling) routing.
Browser Configuration Configure the BAC-5051AE using only an Internet browser. There is no special software to learn or load.
Flexible Mounting Two mounting choices for permanent installations–DIN rail or surface mount.
Diagnostics Embedded metrics include: total number of devices, frame counts, frames in error, data frames, duplicate MAC addresses, token passing, and poll-for-master count.
MS/TP Diagnostics Capture Troubleshoot MS/TP issues by capturing, saving, and analyzing network traffic. Data is saved in industry standard .pcap files.
Automatically Learns Networks Detects and configures routing for the actual discovered networks.
Enable and Disable Routing Use the router as a diagnostic tool to monitor traffic without routing traffic.
VAV Airflow Balancing Use with an Internet browser as an airflow balancing tool for BAC-8000 and BAC-9000 series VAV controllers.
AFMS Configuration Use the router to set up an Airflow Measurement System (AFMS).
Zone Configuration Use the router to set up a BAC-120063CW-ZEC zoning Flexstat.
