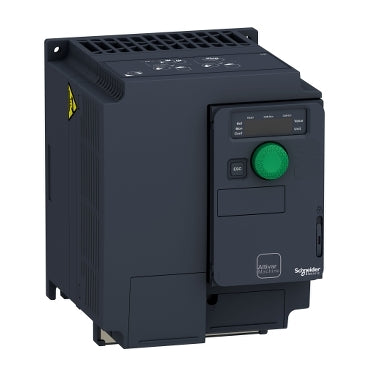

ATV320U40M3C | Variable speed drive, ATV320, 4 kW, 200…240 V, 3 phases, compact | Schneider Electric (Square D)

Schneider Electric (Square D) ATV320U40M3C 240V 3PH COMPACT VAR SPD DRIVE The ATV320U40M3C from Schneider Electric (Square D) is a 240V, 3-phase variable speed drive (VSD) designed for precise control of AC induction motors. This compact VSD offers exceptional performance and reliability for a wide range of industrial applications. Key Features: * 0.37 to 2 HP power range * Vector control technology * Built-in PLC functionality * Modbus RTU and CANopen communication * IP20 protection rating Benefits: * Improved motor control for enhanced efficiency and productivity * Reduced energy consumption and operating costs * Simplified programming and integration * Easy monitoring and diagnostics * Extended equipment life and reduced downtime Applications: The ATV320U40M3C VSD is ideal for various industrial applications, including: * Conveyor systems * Material handling equipment * Pumping systems * HVAC systems * Machine tools Shop now at our HVAC supply store for the best prices and fast shipping on all your industrial electrical needs! Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 4kW / 5hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 2.2kg and its dimensions are 140mm wide, 184mm high, 158mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in three packages. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Range of Product

Altivar Machine ATV320

Product or Component Type

Variable speed drive

Product Specific Application

Complex machines

variant

Standard version

format of the drive

Compact

Mounting Mode

Wall mount

communication port protocol

Modbus serial;CANopen

option card

communication module;CANopen;communication module;EtherCAT;communication module;Profibus DP V1;communication module;PROFINET;communication module;Ethernet Powerlink;communication module;EtherNet/IP;communication module;DeviceNet

[Us] rated supply voltage

200...240 V - 15...10 %

nominal output current

17.5 A

motor power kW

4.0 kW heavy duty

EMC filter

Without EMC filter

IP degree of protection

IP20

discrete input number

7

discrete input type

STO safe torque off;24 V DC1.5 kOhm;DI1...DI6 logic inputs;24 V DC 30 V);DI5 programmable as pulse input 0…30 kHz;24 V DC 30 V)

discrete input logic

Positive logic (source);Negative logic (sink)

discrete output number

3

discrete output type

Open collector DQ+ 0…1 kHz 30 V DC 100 mA;Open collector DQ- 0…1 kHz 30 V DC 100 mA

analogue input number

3

analogue input type

AI1 voltage 0...10 V DC 30 kOhm 10 bits;AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits;AI3 current 0...20 mA (or 4-20 mA;x-20 mA;20-x mA or other patterns by configuration) 250 Ohm 10 bits

analogue output number

1

analogue output type

Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits;Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

relay output type

Configurable relay logic R1A 1 NO 100000 cycles;Configurable relay logic R1B 1 NC 100000 cycles;Configurable relay logic R1C;Configurable relay logic R2A 1 NO 100000 cycles;Configurable relay logic R2C

maximum switching current

Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 250 V AC;Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 30 V DC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 30 V DC;Relay output R2A;R2C resistive;cos phi = 1 5 A 250 V AC;Relay output R2A;R2C resistive;cos phi = 1 5 A 30 V DC

minimum switching current

Relay output R1A;R1B;R1C;R2A;R2C 5 mA 24 V DC

method of access

Slave CANopen

4 quadrant operation possible

True

asynchronous motor control profile

Voltage/frequency ratio;5 points;Flux vector control without sensor;standard;Voltage/frequency ratio - Energy Saving;quadratic U/f;Flux vector control without sensor - Energy Saving;Voltage/frequency ratio;2 points

synchronous motor control profile

Vector control without sensor

maximum output frequency

0.599 kHz

transient overtorque

170…200 % of nominal motor torque

acceleration and deceleration ramps

Linear;U;S;CUS;Ramp switching;Acceleration/deceleration ramp adaptation;Acceleration/deceleration automatic stop with DC injection

motor slip compensation

Automatic whatever the load;Adjustable 0...300 %;Not available in voltage/frequency ratio (2 or 5 points)

switching frequency

2...16 kHz adjustable;4...16 kHz with derating factor

nominal switching frequency

4 kHz

braking to standstill

By DC injection

brake chopper integrated

True

line current

23.8 A 200 V heavy duty);19.9 A 240 V heavy duty)

Maximum Input Current per Phase

23.8 A

maximum output voltage

240 V

apparent power

8.3 kVA 240 V heavy duty)

Network Frequency

50-60 Hz

relative symmetric network frequency tolerance

5 %

prospective line Isc

5 kA

base load current at high overload

17.0 A

power dissipation in W

Fan 140 W 200 V 4 kHz

with safety function Safely Limited Speed (SLS)

True

with safety function Safe brake management (SBC/SBT)

False

with safety function Safe Operating Stop (SOS)

False

with safety function Safe Position (SP)

False

with safety function Safe programmable logic

False

with safety function Safe Speed Monitor (SSM)

False

with safety function Safe Stop 1 (SS1)

True

with sft fct Safe Stop 2 (SS2)

False

with safety function Safe torque off (STO)

True

with safety function Safely Limited Position (SLP)

False

with safety function Safe Direction (SDI)

False

protection type

Input phase breaks drive;Overcurrent between output phases and earth drive;Overheating protection drive;Short-circuit between motor phases drive;Thermal protection drive

Width

5.51 in (140 mm)

Height

7.24 in (184.0 mm)

Depth

6.22 in (158.0 mm)

Net Weight

4.85 lb(US) (2.2 kg)

operating position

Vertical +/- 10 degree

Product Certifications

CE;ATEX;NOM;GOST;EAC;RCM;KC

Marking

CE;ATEX;UL;CSA;EAC;RCM

Standards

EN/IEC 61800-5-1

electromagnetic compatibility

Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 6
