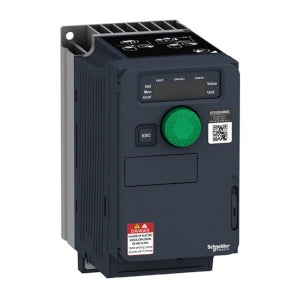

ATV320U22N4C | ALTIVAR VARIABLE SPEED DRIVE ATV320, 2.2KW, 380...500V, 3 PHASE, COMPACT | Schneider Electric (Square D)

Schneider Electric (Square D) NCO-ATV320U22N4C Variable Speed Drive The Schneider Electric (Square D) NCO-ATV320U22N4C is a variable speed drive (VSD) designed to control the speed of three-phase induction motors. This VSD offers precise motor control, energy efficiency, and protection features, making it an ideal solution for various industrial applications. With a power rating of 2.2kW, the NCO-ATV320U22N4C can handle motor loads up to this capacity. It operates on a three-phase input voltage ranging from 380V to 480V, providing flexibility in electrical system configurations. The VSD's compact design allows for easy installation in space-constrained environments. The NCO-ATV320U22N4C features advanced control algorithms that ensure smooth and precise motor speed regulation. It supports various control modes, including sensorless vector control, open-loop vector control, and scalar control, giving users flexibility in optimizing system performance. This VSD integrates several protection functions to safeguard both the motor and the drive itself. These include overload protection, short-circuit protection, ground fault protection, and overtemperature protection. Additionally, the NCO-ATV320U22N4C offers diagnostic capabilities that assist in troubleshooting and preventive maintenance. The Schneider Electric (Square D) NCO-ATV320U22N4C variable speed drive is a reliable and efficient solution for controlling the speed of induction motors in industrial applications. Its compact design, advanced control features, and protection mechanisms make it a valuable asset for optimizing system performance and ensuring reliable operation. Shop our HVAC supply store for the best prices and fast shipping on the Schneider Electric (Square D) NCO-ATV320U22N4C variable speed drive and other industrial products! This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 1.1kW / 1.5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 ) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electrics EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
