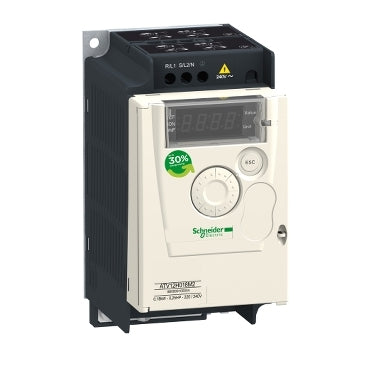

ATV12H037F1 | Variable Speed Drive ATV12, 0.37kW, 0.55HP, 100 to 120V, 1 Phase, with heat sink | Schneider Electric (Square D)

Schneider Electric ATV12H037F1 Variable Speed Drive: Power and Control for Industrial ApplicationsThe Schneider Electric ATV12H037F1 Variable Speed Drive is a compact and efficient solution for controlling and optimizing the performance of electric motors in industrial applications. This drive offers precise control over motor speed, torque, and direction, enabling users to maximize productivity and energy efficiency. Key Features and Benefits: - Compact design for easy installation in space-constrained environments - Advanced vector control for precise motor operation - Built-in I/O for flexible connectivity and control options - Modbus communication capabilities for remote monitoring and control - Integrated brake transistor for smooth and efficient stopping The ATV12H037F1 is ideal for applications ranging from simple conveyor systems to complex machinery. Its versatility and ease of use make it a valuable asset for engineers and maintenance professionals seeking to enhance efficiency, productivity, and performance in their industrial operations. Choose our HVAC supply store for the Best Prices and Fast Shipping on the Schneider Electric ATV12H037F1 Variable Speed Drive. Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.5hp and a rated voltage from 100V to 120V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Range of Product

Altivar 12

Product or Component Type

Variable speed drive

Product Specific Application

Simple machine

Mounting Mode

Cabinet mount

Communication Port Protocol

Modbus

supply frequency

50/60 Hz +/- 5 %

[Us] rated supply voltage

100...120 V - 15...10 %

nominal output current

2.4 A

Maximum Horse Power Rating

0.55 hp

motor power kW

0.37 kW

Maximum Horse Power Rating

0.55 hp

EMC filter

Without EMC filter

IP degree of protection

IP20

discrete input number

4

discrete output number

2

analogue input number

1

analogue output number

1

relay output number

1

physical interface

2-wire RS 485

Connector Type

1 RJ45

continuous output current

2.4 A 4 kHz

method of access

Server Modbus serial

speed drive output frequency

0.5…400 Hz

speed range

1…20

sampling duration

20 ms +/- 1 ms logic input;10 ms analogue input

linearity error

+/- 0.3 % of maximum value analogue input

frequency resolution

Analog input converter A/D;10 bits;Display unit 0.1 Hz

time constant

20 ms +/- 1 ms for reference change

Transmission Rate

9.6 kbit/s;19.2 kbit/s;38.4 kbit/s

transmission frame

RTU

number of addresses

1…247

data format

8 bits;configurable odd;even or no parity

communication service

Read holding registers (03) 29 words;Write single register (06) 29 words;Write multiple registers (16) 27 words;Read/write multiple registers (23) 4/4 words;Read device identification (43)

type of polarization

No impedance

4 quadrant operation possible

False

asynchronous motor control profile

Voltage/frequency ratio (V/f);Quadratic voltage/frequency ratio;Sensorless flux vector control

maximum output frequency

4 kHz

transient overtorque

150…170 % of nominal motor torque depending on drive rating and type of motor

acceleration and deceleration ramps

S;U;Linear from 0 to 999.9 s

motor slip compensation

Preset in factory;Adjustable

switching frequency

2...16 kHz adjustable;4...16 kHz with derating factor

nominal switching frequency

4 kHz

braking to standstill

By DC injection

brake chopper integrated

False

line current

11.4 A 100 V heavy duty);9.3 A 120 V heavy duty)

Maximum Input Current per Phase

9.3 A

maximum output voltage

240 V

apparent power

1.1 kVA 240 V heavy duty)

maximum transient current

3.6 A 60 s heavy duty);4.0 A 2 s heavy duty)

Network Frequency

50-60 Hz

relative symmetric network frequency tolerance

5 %

prospective line Isc

1 kA

base load current at high overload

2.4 A

power dissipation in W

Natural 29.0 W

with safety function Safely Limited Speed (SLS)

False

with safety function Safe brake management (SBC/SBT)

False

with safety function Safe Operating Stop (SOS)

False

with safety function Safe Position (SP)

False

with safety function Safe programmable logic

False

with safety function Safe Speed Monitor (SSM)

False

with safety function Safe Stop 1 (SS1)

False

with sft fct Safe Stop 2 (SS2)

False

with safety function Safe torque off (STO)

False

with safety function Safely Limited Position (SLP)

False

with safety function Safe Direction (SDI)

False

protection type

Line supply overvoltage;Line supply undervoltage;Overcurrent between output phases and earth;Overheating protection;Short-circuit between motor phases;Against input phase loss in three-phase;Thermal motor protection via the drive by continuous calculation of I²t

tightening torque

7.08 lbf.in (0.8 N.m)

insulation

Electrical between power and control

Quantity per Set

Set of 1

Width

2.83 in (72 mm)

Height

5.63 in (143 mm)

Depth

4.77 in (121.2 mm)

Net Weight

1.76 lb(US) (0.8 kg)

operating altitude

> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m;<= 3280.84 ft (1000 m) without derating

operating position

Vertical +/- 10 degree

Product Certifications

NOM;CSA;C-tick;UL;GOST;RCM;KC

Marking

CE

Standards

UL 508C;UL 618000-5-1;EN/IEC 61800-5-1;EN/IEC 61800-3

assembly style

With heat sink

electromagnetic compatibility

Electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4;Electrostatic discharge immunity test level 3 EN/IEC 61000-4-2;Immunity to conducted disturbances level 3 EN/IEC 61000-4-6;Radiated radio-frequency electromagnetic field immunity test level 3 EN/IEC 61000-4-3;Surge immunity test level 3 EN/IEC 61000-4-5;Voltage dips and interruptions immunity test EN/IEC 61000-4-11

environmental class (during operation)

Class 3C3 according to IEC 60721-3-3;Class 3S2 according to IEC 60721-3-3

maximum acceleration under shock impact (during operation)

150 m/s² at 11 ms

maximum acceleration under vibrational stress (during operation)

10 m/s² at 13...200 Hz

maximum deflection under vibratory load (during operation)

1.5 mm at 2...13 Hz

overvoltage category

Class III

regulation loop

Adjustable PID regulator

electromagnetic emission

Radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable;Conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable <16.40 ft (5 m);Conducted emissions with additional EMC filter environment 1 category C2 EN/IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m);Conducted emissions with additional EMC filter environment 2 category C3 EN/IEC 61800-3 4...12 kHz shielded motor cable <65.62 ft (20 m)

vibration resistance

1 gn 13…200 Hz)EN/IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6

shock resistance

15 gn 11 ms EN/IEC 60068-2-27

relative humidity

5…95 % without condensation IEC 60068-2-3;5…95 % without dripping water IEC 60068-2-3

noise level

0 dB

pollution degree

2

ambient air transport temperature

-13…158 °F (-25…70 °C)

ambient air temperature for operation

14…104 °F (-10…40 °C) without de
