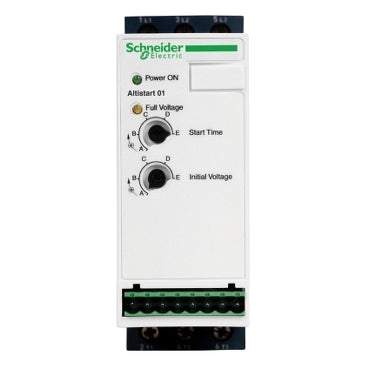

ATS01N112FT | Altistart 01 Soft Start (ATS01), for Asynchronous Motor, 12A, 110-480V, 1.5-7.5 HP, 1.5-5.5 kW, Single-phase, Integrated Bypass, w/Heat Sink | Schneider Electric (Square D)

Schneider Electric (Square D) | ATS01N112FT

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ATS01N112FT

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Schneider Electric (Square D) ATS01N112FT Documents

More Info

Overview

Details for ATS01N112FT

The Schneider Electric (Square D) ATS01N112FT Soft Motor Starter is a high-performance motor control solution engineered for industrial applications. This 12-amp soft starter operates within a wide voltage range of 110-460 volts, providing versatility in various electrical systems. It employs advanced technology to offer smooth acceleration and deceleration of motors, reducing mechanical stress and extending equipment lifespan. With its compact design, the ATS01N112FT seamlessly integrates into industrial settings, maximizing space efficiency. It features a robust construction, ensuring durability and reliability even in demanding environments. The starter's intuitive interface and easy-to-use controls allow for effortless operation and precise adjustment to meet specific application requirements. The Schneider Electric (Square D) ATS01N112FT Soft Motor Starter is ideal for a wide range of industrial machinery, including pumps, fans, conveyors, and compressors. Its advanced features and reliable performance contribute to improved efficiency, reduced downtime, and enhanced safety for industrial operations. Shop our HVAC supply store offers competitive pricing and fast shipping for the Schneider Electric (Square D) ATS01N112FT Soft Motor Starter. Our commitment to customer satisfaction ensures that our clients receive the best value for their money. Contact us today to place your order and experience the exceptional quality and performance of this advanced motor control solution. This Altistart 01 soft starter is DIN rail mounted and can feed single or 3-phase asynchronous motors with a rating up to 12A. This Altistart 01 can be used for a motor rated power up to 5.5kW or 7.5hp for 3-phase (110V to 480V AC) and up to 1.5kW for single phase (110V to 230V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market; it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings: possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Specifications

Range of Product: Altistart 01
Product or Component Type: Soft starter
product destination: Asynchronous motors
Product Specific Application: Simple machine
device short name: ATS01
Phase: 1 phase
[Us] rated supply voltage: 110...480 V - 10...10 %
motor power kW: 2.2 kW;3 phase 230 V;5.5 kW;3 phase 400 V;1.5 kW;1 phase 230 V
Maximum Horse Power Rating: 3 hp;3 phase 230 V;1.5 hp;3 phase 210 V;7.5 hp;3 phase 460 V
IcL starter rating: 12 A
utilisation category: AC-53B EN/IEC 60947-4-2
current consumption: 60 A at nominal load
type of start: Start with voltage ramp
power dissipation in W: 1 W at full load and at end of starting;61 W in transient state
assembly style: With heat sink
Function Available: Integrated bypass
supply voltage limits: 99…528 V
supply frequency: 50...60 Hz - 5...5 %
Network Frequency: 47.5...63 Hz
output voltage: <= power supply voltage
[Uc] control circuit voltage: 110 V AC +/- 10 % 35 mA;24 V AC/DC +/- 10 % 30 mA;240 V AC +/- 10 % 80 mA
starting time: 1 s / 100;5 s / 20;Adjustable from 1 to 5 s
starting torque: 30...80 % of starting torque of motor connected directly on the line supply
discrete output current: 2 A DC-13;3 A AC-15
tightening torque: 16.82…22.13 lbf.in (1.9…2.5 N.m);4.43 lbf.in (0.5 N.m)
electrical connection: 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit;Screw connector - rigid 1 0.5...2.5 mm² AWG 14 control circuit;4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit;Screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit;Screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit;4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit;Screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit;4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit;4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit;Screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
Marking: CE
operating position: Vertical +/- 10 degree
Height: 4.88 in (124 mm)
Width: 1.77 in (45 mm)
Depth: 5.16 in (131 mm)
Net Weight: 0.62 lb(US) (0.28 kg)
compatibility code: ATS01N1
Motor power range AC-3: 1.1…2 kW 200…240 V 1 phase;2.2…3 kW 200…240 V 3 phase;4…6 kW 380…440 V 3 phase
motor starter type: Soft starter
electromagnetic compatibility: Conducted and radiated emissions level B CISPR 11;Conducted and radiated emissions level B IEC 60947-4-2;Damped oscillating waves level 3 IEC 61000-4-12;Electrostatic discharge level 3 IEC 61000-4-2;EMC immunity EN 50082-1;EMC immunity EN 50082-2;Harmonics IEC 1000-3-2;Harmonics IEC 1000-3-4;Immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6;Immunity to electrical transients level 4 IEC 61000-4-4;Immunity to radiated radio-electrical interference level 3 IEC 61000-4-3;Micro-cuts and voltage fluctuation IEC 61000-4-11;Voltage/current impulse level 3 IEC 61000-4-5
Standards: EN/IEC 60947-4-2
Product Certifications: B44.1-96/ASME A17.5 for starter wired to the motor delta terminal;C-tick;CCC;UL;CSA;GOST
IP Degree of Protection: IP20
pollution degree: 2 EN/IEC 60947-4-2
vibration resistance: 1 gn 13…150 Hz)EN/IEC 60068-2-6;1.5 mm peak to peak 3…13 Hz)EN/IEC 60068-2-6
shock resistance: 15 gn 11 ms EN/IEC 60068-2-27
relative humidity: 5…95 % without condensation or dripping water EN/IEC 60068-2-3
ambient air temperature for operation: 14…104 °F (-10…40 °C) without derating);104…122 °F (40…50 °C) with current derating of 2 % per °C)
ambient air temperature for storage: -13…158 °F (-25…70 °C) EN/IEC 60947-4-2
operating altitude: <= 3280.84 ft (1000 m) without derating;> 3280.84 ft (1000 m) with current derating of 2.2 % per additional 100 m
Category: 22392-ATSU01/ATS01 LOW HP SOFT STARTERS
Discount Schedule: I11
GTIN: 3389110667165
Returnability: Yes
Country of origin: DE
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.05 in (5.200 cm)
Package 1 Width: 6.10 in (15.500 cm)
Package 1 Length: 6.89 in (17.500 cm)
Package 1 Weight: 12.10 oz (343.000 g)
Unit Type of Package 2: S03
Number of Units in Package 2: 14
Package 2 Height: 11.81 in (30.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 11.80 lb(US) (5.353 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 112
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 23.62 in (60.000 cm)
Package 3 Length: 31.50 in (80.000 cm)
Package 3 Weight: 118.92 lb(US) (53.940 kg)
Warranty: 18 months
