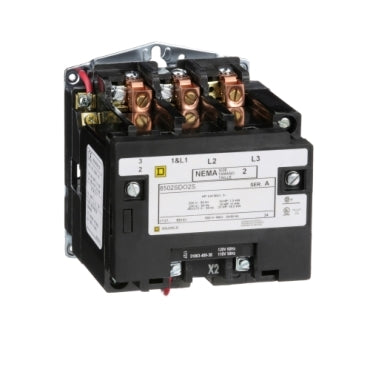

8502SDO2V02S | Class 8502 Type S Magnetic Contactor, Not Rated, 45A, 3-Poles, 110 VAC 50HZ, 120 VAC 60Hz, Non-Reversing | Schneider Electric (Square D)

120v 3P 45A Sz2 OPEN CONTACTOR: Schneider Electric (Square D) NCO-8502SDO2V02S contactor is designed for use in industrial and commercial applications. This contactor is rated for 120 volts and has a 3-pole design. It has a 45 amp continuous current rating and a size 2 frame. The contactor is open, meaning that it does not have any built-in contacts. This contactor is ideal for use in applications where you need to control a high-power load. Our HVAC supply store offers the best prices and fast shipping on all of our products. Shop now! Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 2 non-reversing contactor has a 45 ampere rating. Three phase NEMA Size 2 contactors have 10 HP at 200, 15 HP at 230 VAC and 25 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 110/120 VAC 50/60 Hz coil that is wired for separate control. This NEMA contactor is an open device without an enclosure. This contactor is 5.13 inches tall, 4.31 inches wide and 4.94 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
