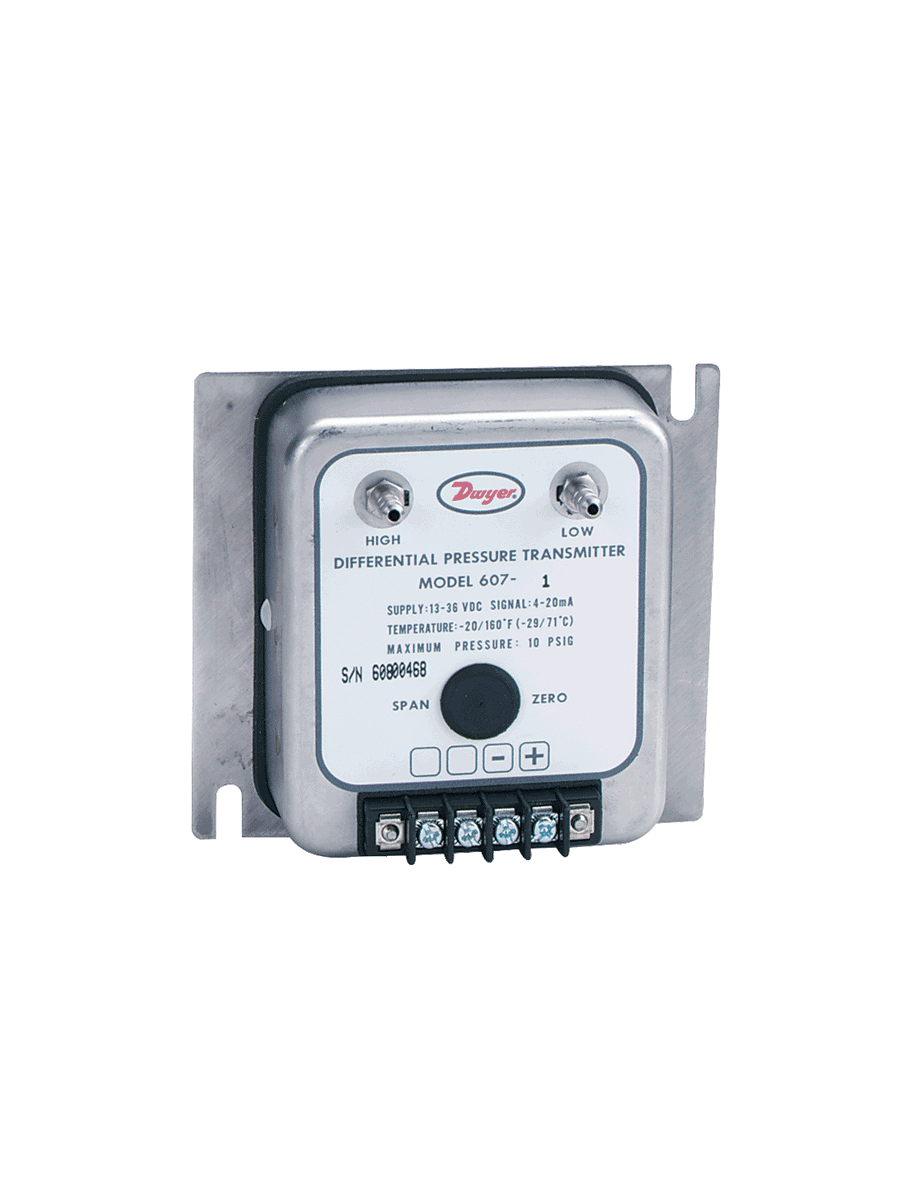

607-2 | Differential pressure transmitter | range 0-.50" w.c. | Dwyer Instruments

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 607-2

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Dwyer Instruments 607-2 Documents

Instruction Manual Series 607 Catalog Page More Info

Overview

Details for 607-2

Dwyer Instruments NCO-607-2 Differential Pressure Transmitter: Precise Monitoring and ControlThe Dwyer Instruments NCO-607-2 Differential Pressure Transmitter is an accurate and reliable device designed for precise measurement and control of differential pressure in industrial applications. Technical Specifications: - SKU: 607-2 - Pressure Range: 0-0.5" w.c. - Accuracy: Â±1% full scale - Output Signal: 4-20 mA DC - Power Supply: 15-35 VDC - Process Connection: 1/4" NPT Key Features: - Compact and Rugged Design: Its compact design and rugged construction make it suitable for harsh industrial environments. - High Accuracy and Stability: With an accuracy of Â±1% full scale, it provides precise and stable pressure measurements. - Wide Pressure Range: The 0-0.5" w.c. pressure range covers a broad spectrum of applications. - Versatile Output Signal: The 4-20 mA DC output signal enables easy integration with control systems. Applications: The Dwyer Instruments NCO-607-2 Differential Pressure Transmitter is ideal for various industrial applications, including: - Airflow monitoring and control - Pressure drop measurement - Duct pressure monitoring - Filter monitoring Order your Dwyer Instruments NCO-607-2 Differential Pressure Transmitter today from our HVAC supply store! We offer the best prices and fast shipping to meet your industrial needs.

Series 607 Differential Pressure Transmitter

±0.25% or ±0.5% FS Accuracy, Ranges from 0 to 25" w.c.

Series 607 Differential Pressure Transmitter combines very low ranges with exceptional stability, reliability and either ±0.25% or ±0.5% accuracy for the most demanding applications. Ranges from 0-0.1" to 0-25" w.c. Ultra thin glass clad silicon diaphragm design resists shock and vibration, practically eliminates drift. Certification to NIST standards is included with each unit. Tough stainless steel housing is NEMA 2 rated to protect against moisture and dirt. Use with air and other compatible gases.

Product Applications

Leak Detection
Clean Room Control
Lab and Fume Hood Pressure Control

High stability at low pressure ranges provides exceptional accuracy for ensuring tight-control and minimizing costly out of specification conditions
Provides sensitivity to pressure changes but resists vibration preventing drift and less accurate readings
Stainless steel housing meets standards for lab and clean room applications

Specifications

Series: 607 Differential Pressure Transmitter
freeship
Category/Type: Pressure
Type: Differential Pressure
Series: 607 Differential Pressure Transmitter
Service: Air and non-conductive; non-corrosive gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% or ±0.25% FS.
Stability: ±0.5% FS/yr.
Temperature Limits: -20 to 160°F (-29 to 71°C); 10 to 95% RH.
Pressure Limits: 10 psig (0.69 bar).
Compensated Temperature Range: 35 to 135°F (2 to 57°C).
Thermal Effects: ±0.015% F.S./°F (zero and span).
Power Requirements: 12 to 36 VDC.
Output Signal: 4 to 20 mA DC; 2-wire.
Zero and Span Adjustments: Externally accessible potentiometers; non-interactive; ±10% F.S. adjustment.
Response Time: 250 ms max.
Loop Resistance: 0 to 1045 ohms Vmin=12V+[(.22A)(RL)].
Current Consumption: 3.6 mA (min).
Electrical Connections: Screw terminals.
Process Connections: Barbed stainless steel for 3/16" I.D. tubing.
Housing: 300 Series stainless steel (NEMA 2).
Weight: 1.04 lb (472 g).
Agency Approvals: CE.
